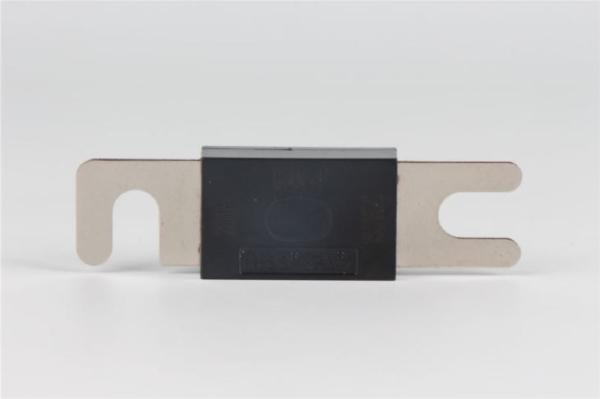

PBT Material Electric Vehicle Fuses 125VAC 3KA Interrupting

Name: PBT Material Electric Vehicle Fuses 125VAC 3KA Interrupting
Brand: Dissmann
Price: 1 USD

Quality PBT Material Electric Vehicle Fuses 125VAC 3KA Interrupting wholesale

Brand Name : Dissmann

Model Number : DNN-H

Certification : UR,UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Electric wood shell

Colour : Black

Rated Voltage : 150VDC/125VAC

Rated Current : 500A

Interrupting Capacity : 3KA

Certificates : UR,UL

Body material : PBT/PPS

Characteristics : Time-lag

Contact Now

Electric wood shell Material Electric Vehicle Fuses 125VAC 3KA Interrupting

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

Rated Voltage

额定电压

80VDC/125VAC

Type Protection

保护类别

Time-lag

Rated Current 额定电流

10A-500A

Breaking Capacity

分断能力

DC2700A

Meet the Requirement

符合要求

UL248-13,ISO8820,JASO-D622,

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

制造材料/Manufacturing material

Component name

部件名称

Material

材料

Contact the foot

接触脚

Copper alloy

铜合金

Noumenon

本体

Electric wood shell

电木壳

性能标准/Performance criteria

Load(测试电流)	Opening time(熔断时间)
	10A～500A
	最小时间 min	最大时间 max
110%	14400	∞
160%	10	∞
200%(200A及以下)	0	100
200%(200A以上)	0	300
250%(200A及以下)	0	60
250%(200A以上)	0.8	120
600%	0.02	10

Model 型号	Product code 产品代码	Rated current 额定电流 A	Voltage drop 电压降 mV	Installation requirement安装要求
DNN-H	DNN-H-35	35	130	Install bolt M8, recommended torque 10N·m ±1 N·m 安装螺栓M8,推荐扭矩10N·m±1 N·m
	DNN-H-40	40	125
	DNN-H-50	50	120
	DNN-H-60	60	116
	DNN-H-80	80	112
	DNN-H-100	100	110
	DNN-H-125	125	105
	DNN-H-130	130	100
	DNN-H-150	150	96
	DNN-H-175	175	90
	DNN-H-200	200	86
	DNN-H-225	225	83
	DNN-H-250	250	80
	DNN-H-275	275	77
	DNN-H-300	300	75
	DNN-H-325	325	83
	DNN-H-350	350	81
	DNN-H-400	400	80
	DNN-H-425	425	78
	DNN-H-450	450	78
	DNN-H-500	500	76

电流特性曲线图/

Current characteristic curve

PBT Material Electric Vehicle Fuses 125VAC 3KA Interrupting

Product Anatomy:

Product Applications

Test Equipment

Our Certificates
