EV Dissmann High Breaking Capacity Fuse UL Certified DC500V

Name: EV Dissmann High Breaking Capacity Fuse UL Certified DC500V
Brand: Dissmann
Price: 1 USD

Quality EV Dissmann High Breaking Capacity Fuse UL Certified DC500V wholesale

Brand Name : Dissmann

Model Number : EV series

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Material : Ceramic

Protection type : aR

Breaking capacity : DC20KA/AC100KA

Rated Voltage : AC/DC500V

Rated Current : AC100KA/DC20KA

Contact Now

Dissmann High Breaking Cpacity Fuse UL Certified EV Fuse DC500V Electric Vehicle Fuse Made In China

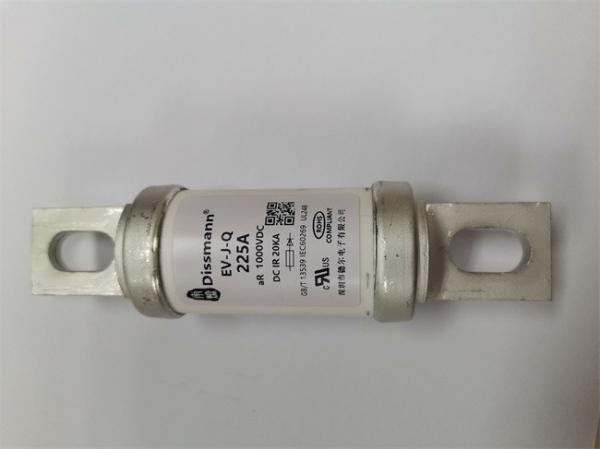

EV Dissmann High Breaking Capacity Fuse UL Certified DC500V

This series of products are round tube bolt type fuses, which have the characteristics of small size, fast fusing, low I2t, high reliability, etc. It is suitable for short circuit and backup protection of frequency converter, rectifier, inverter, various power supply and other semiconductor equipment, as well as power battery, motor, capacitor, wire and other equipment and devices. This product has good vibration resistance and flame retardancy, and is suitable for rail transit, motor vehicles and other vibration environment applications.

High voltage EV series fuse:

1.DC500V EV-P-Q series fuse(Rated current:10A-500A, Protection type: aR, Breaking capacity: DC20KA/AC100KA)

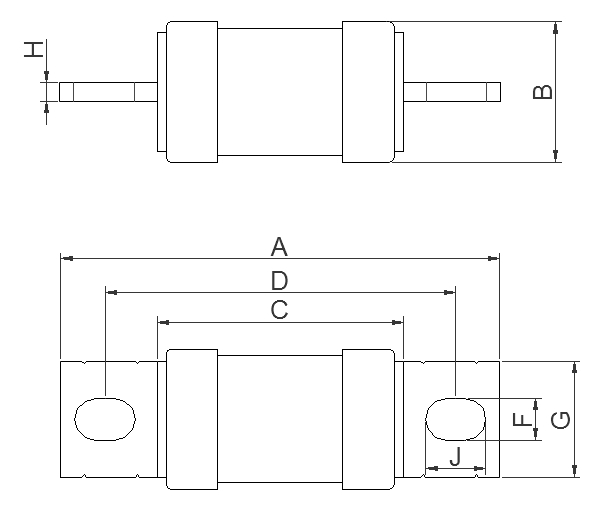

Model	Size code	A±2	B±1.5	C±1	D±1.5	F±1	G±0.5	H±0.2	J±1
EV-H-Q	VH1	94.5	30.5	52.5	74.5	9	25	4	13
EV-H-Q	VH2	119.5	37	56.5	88.5	11	25	6	15

Protuct type:

Model	Rated current A	I²t(A²s)		Power consumption W	Size Code	Install
Model	Rated current A	Pre-arc	Fusing	Power consumption W	Size Code	Install
EV-H-Q-80	80	5500	6400	15	VH1	Mounting Bolt M8 recommended torque 11N·m
EV-H-Q-100	100	8700	10000	19
EV-H-Q-125	125	15000	17810	23.5
EV-H-Q-150	150	25000	29000	28
EV-H-Q-175	175	40500	45000	33
EV-H-Q-200	200	60300	68000	37
EV-H-Q-225	225	83100	95000	40
EV-H-Q-250	250	120000	138000	45
EV-H-Q-275	275	173200	189000	48
EV-H-Q-300	300	203000	243000	55.5
EV-H-Q-350	350	252000	355000	62
EV-H-Q-300	300	148500	260000	53.5	VH2	Mounting Bolt M10 recommended torque 20N·m
EV-H-Q-315	315	168000	280000	57
EV-H-Q-350	350	203000	350000	61
EV-H-Q-400	400	312000	496000	68
EV-H-Q-500	500	550000	865000	78

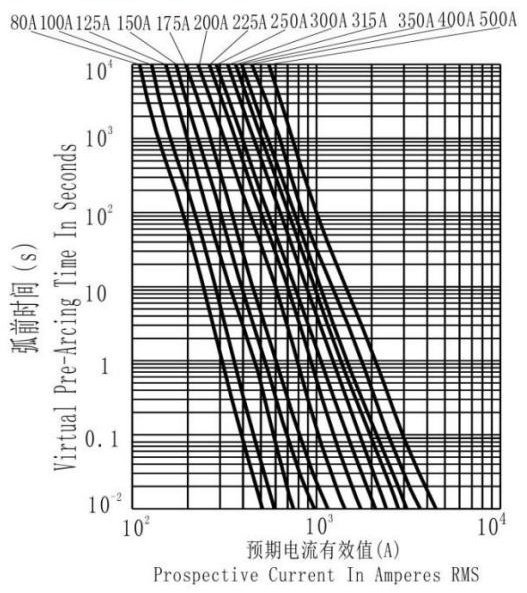

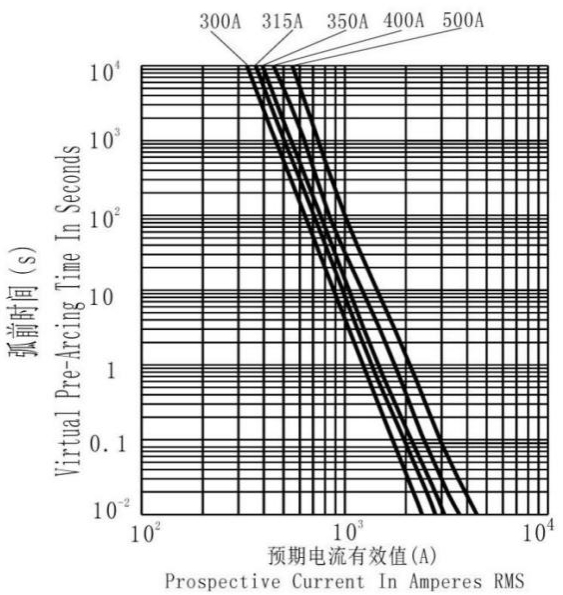

Current characteristic curve of the DC500V Electric vehicle fuse:

EV Dissmann High Breaking Capacity Fuse UL Certified DC500V

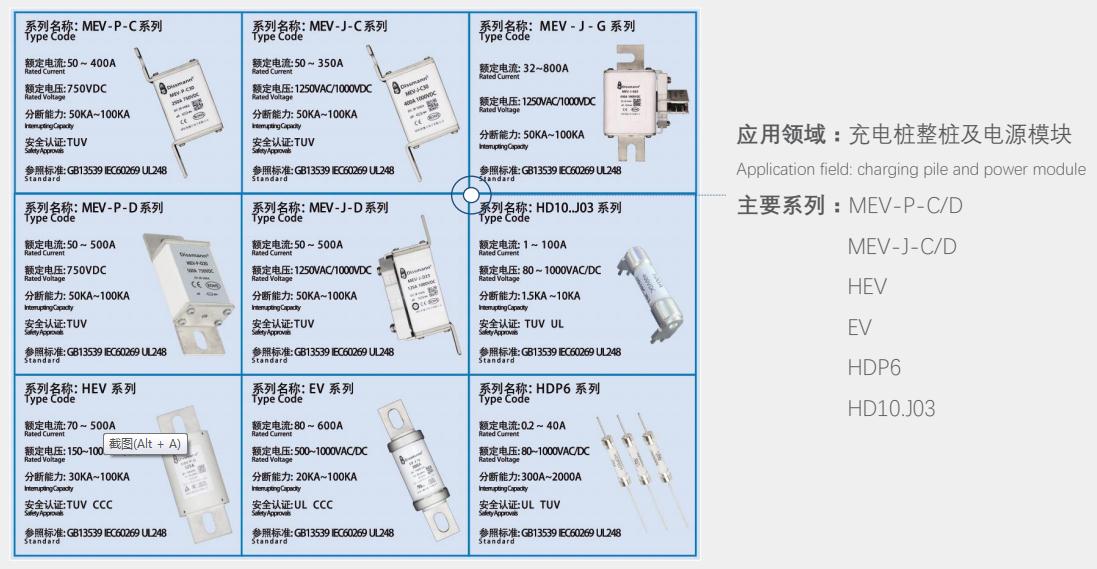

Application of the DC500V EV fuse:

EV Dissmann High Breaking Capacity Fuse UL Certified DC500V
