125VAC Electric Vehicle Fuses , Fast Acting 40 Amp Dc Fuse Electric Wood Shell

Name: 125VAC Electric Vehicle Fuses Fast Acting 40 Amp Dc Fuse Electric Wood Shell
Brand: Dissmann
Price: 1 USD

Quality 125VAC Electric Vehicle Fuses , Fast Acting 40 Amp Dc Fuse Electric Wood Shell wholesale

Brand Name : Dissmann

Model Number : DFN-H

Certification : 40A

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : PBT

Colour : Blown

Rated Voltage : 80VDC/125VAC

Rated Current : 1A-40A

Interrupting Capacity : 1KA

Certificates : UR,UL

Characteristics : Fast-acting

Environmental protection : RoHS, Reach

Contact Now

Circuit Protection Accessories Fuse,Automotive Fuse,Mini Fuse

Material:
Noumenon: PBT
Pins: Copper alloy

Product Presentation:

Rated Voltage

80VDC

Characteristic

Fast Blowing

Rated Current

1A-40A

Breaking Capacity

DC1000A

Meet the Requirement

UL248,ISO8820,

EU and Rosh Directive

Remarks

Product Anatomy

Overall dimensions of the product(mm)

125VAC Electric Vehicle Fuses , Fast Acting 40 Amp Dc Fuse Electric Wood Shell

Currentcharacteristiccurve

125VAC Electric Vehicle Fuses , Fast Acting 40 Amp Dc Fuse Electric Wood Shell

Product type of Electri Vehicle Fuses

Model	Product code	Rated current	I²t	Voltage drop	Pigment
Model	Product code	Rated current	(A²Sec)	Voltage drop	Pigment
DFN-H	DFN-H-1	1	0.4	174	(Black)
	DFN-H-2	2	1.5	140	(Gray)
	DFN-H-3	3	6.3	137	(Violet)
	DFN-H-4	4	13	135	(Pink)
	DFN-H-5	5	25	125	(Tan)
	DFN-H-7.5	7.5	56	115	(Brown)
	DFN-H-10	10	110	110	(Red)
	DFN-H-15	15	295	102	(Blue)
	DFN-H-20	20	480	96	(Yellow)
	DFN-H-25	25	1000	90	(Clear)
	DFN-H-30	30	1460	86	(Green)
	DFN-H-35	35	2205	88	(Dark green)
	DFN-H-40	40	3200	95	(Orange)

Performance criteria

Test current item(A)	Current	Minimum time(s)	Maximum time(s)
110%	1A-40A	3600	∞
150%	1A-40A	0.5	300
200%	1A-40A	0.15	20
350%	1A-40A	0.04	0.5
600%	1A-40A	0.02	0.1

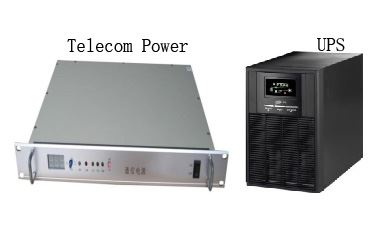

Product Applications

125VAC Electric Vehicle Fuses , Fast Acting 40 Amp Dc Fuse Electric Wood Shell

Test equipment

Production equipment

Our Certificates
