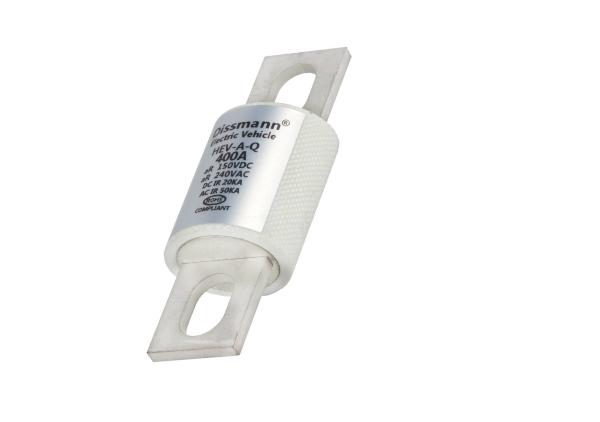

Dissmann Electric Vehicle 400 Amp Dc Fuse JASO-D622 Standard

Name: Dissmann Electric Vehicle 400 Amp Dc Fuse JASOD622 Standard
Brand: Dissmann
Price: 1 USD

Quality Dissmann Electric Vehicle 400 Amp Dc Fuse JASO-D622 Standard wholesale

Brand Name : Dissmann

Model Number : HEV-A-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 150VDC/240VAC

Rated Current : 400A

Breaking Capacity : DC20KA/AC50KA

Standard : UL248-20、ISO8820、 JASO-D622、ROHS

Usage : Automotive,energy storage system,Solar

Keyword : Energy Storage System fuse

Contact Now

Energy Storage System Fuses Low Current Fuse EV Fuse AC 50KA Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

Rated Voltage

AC250V/DC150V

Type Protection

Rated Current

5A-800A

Breaking Capacity

DC20KA

(time constant≤15ms)

Meet the Requirement

UL248-20,ISO8820,JASO-D622,

Europe and RoHs Directive

Remarks

—

Shape and mounting dimensions of fuses

Dissmann Electric Vehicle 400 Amp Dc Fuse JASO-D622 Standard

Dimension code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HW1	68.2	25	29	44	53	9	18	3.3	13.5
HW2	94	38	38	54	74.5	10.5	25	6	20.7

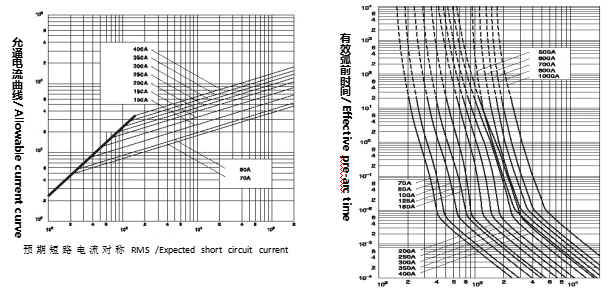

Allowable current curve Current characteristic curve

150V(70-1000)A

Dissmann Electric Vehicle 400 Amp Dc Fuse JASO-D622 Standard

Product type

Model	Rated Current (A)	I²t(A²s)		Power dissipation (W)	Size code	Install
Model	Rated Current (A)	Pre-Arc	After-Arc	Power dissipation (W)	Size code	Install
HEV-A-Q-70	70A	460	3920	6.8	HW1	Mounting Bolt M8 recommended torque 11N·m
HEV-A-Q-80	80A	665	5850	7.5
HEV-A-Q-100	100A	1120	11100	8.8
HEV-A-Q-125	125A	1840	17600	11.0
HEV-A-Q-150	150A	2650	25400	12.8
HEV-A-Q-200	200A	4750	44000	17.5
HEV-A-Q-250	250A	7420	68500	22.5
HEV-A-Q-300	300A	11000	99000	26.5
HEV-A-Q-350	350A	14800	139000	30.4
HEV-A-Q-400	400A	18800	180000	34.8
HEV-A-Q-500	500A	36000	110000	34.5	HW2	Mounting Bolt M10 recommended torque 20N·m
HEV-A-Q-600	600A	43500	125000	45.6
HEV-A-Q-700	700A	68000	198000	48.5
HEV-A-Q-800	800A	86000	255000	57.0
HEV-A-Q-1000	1000A	152000	470000	59.5

Product Anatomy

Test equipment

Dissmann Electric Vehicle 400 Amp Dc Fuse JASO-D622 Standard

Production equipment

Our Certificates
