Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System

Name: Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : DNN-P-40

Certification : UL248-20、ISO8820、JAS0-D622、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Contact the foot : Copper alloy

Noumenon : Electric wood shell

Rated voltage : 150VDC/250VAC

rated current : 35A~500A

breaking capacity : DC3000A

characteristics : small size, low power consumption and high breaking capacity

Contact Now

Dissmann^®Blade Type Fuse DC150V Flat Plug Fuse for Battery Storage System

DNN-P series blade type fuse

Flat plug type automobile fuse (bolt type installation), with dimensions and performance conforming to UL248
Rated voltage: 150VDC/250VAC, rated current: 35A~500A, breaking capacity: DC3000A
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E496,054
This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. Applicable to low-speed electric vehicles, motors and charging modules.

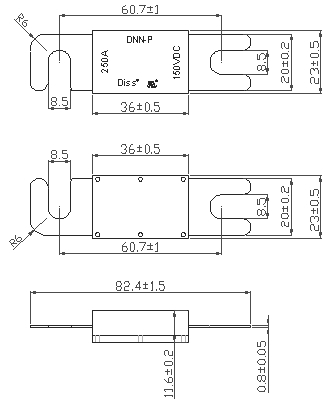

1.Dimension of the blade type fuse:

Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System

2.Materials of the blade type fuse

Component name	Material
Contact the foot	Copper alloy
Noumenon	Electric wood shell

3.Performance of the blade type fuse

Load	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(≤200A)	0	100
200%(＞200A)	0	300
250%(≤200A)	0	60
250%(＞200A)	0.8	120
600%	0.02	10

4.Current characteristic curve of the blade type fuse

Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System

5.The DNN-P series DC150V blade type fuse model

Model	Product code	Rated current A	Voltage drop mV	Installation requirement
DNN-H	DNN-P-35	35	130	Install bolt M8, recommended torque 10N·m ±1 N·m
	DNN-P-40	40	125
	DNN-P-50	50	120
	DNN-P-60	60	116
	DNN-P-80	80	112
	DNN-P-100	100	110
	DNN-P-125	125	105
	DNN-P-130	130	100
	DNN-P-150	150	96
	DNN-P-175	175	90
	DNN-P-200	200	86
	DNN-P-225	225	83
	DNN-P-250	250	80
	DNN-P-275	275	77
	DNN-P-300	300	75
	DNN-P-325	325	83
	DNN-P-350	350	81
	DNN-P-400	400	80
	DNN-P-425	425	78
	DNN-P-450	450	78
	DNN-P-500	500	76

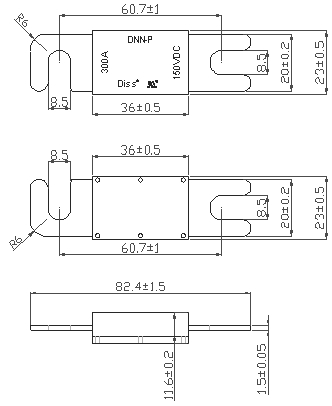

When the Rated current ≥300A,the contact foot will be thicker,please check the follow dimensions:

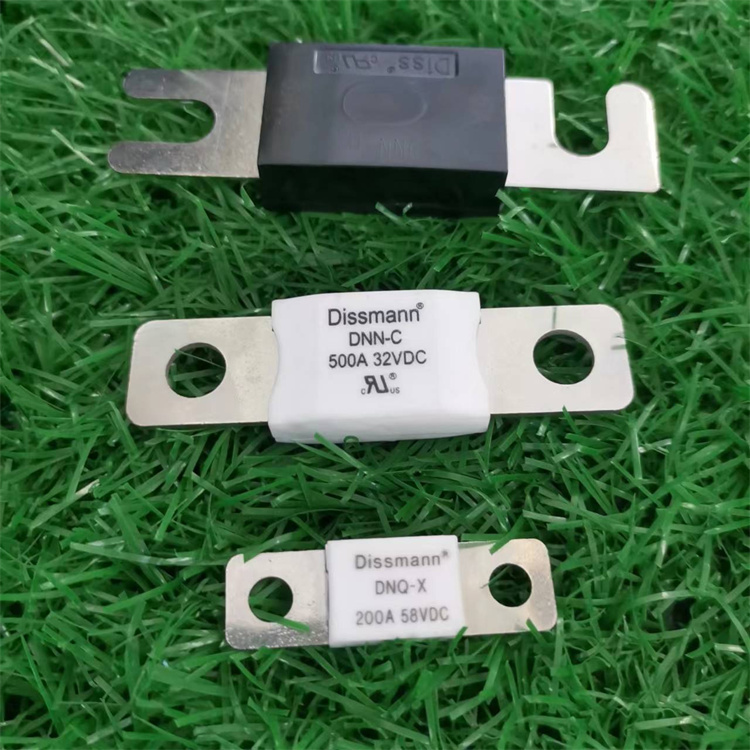

We can supply you different size of blade type fuses:

Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System

a.DNN-A/X/H/P series fuse,L size,the rated voltage include:DC32V/58V/80V/150V AC125V/250V

b.DNN-C/D/E series fuse,M size,the rated voltage include:DC32V/58V/80V

c.DNQ-A/X/H series fuse,S size,the rated voltage include:DC32V/58V/80V

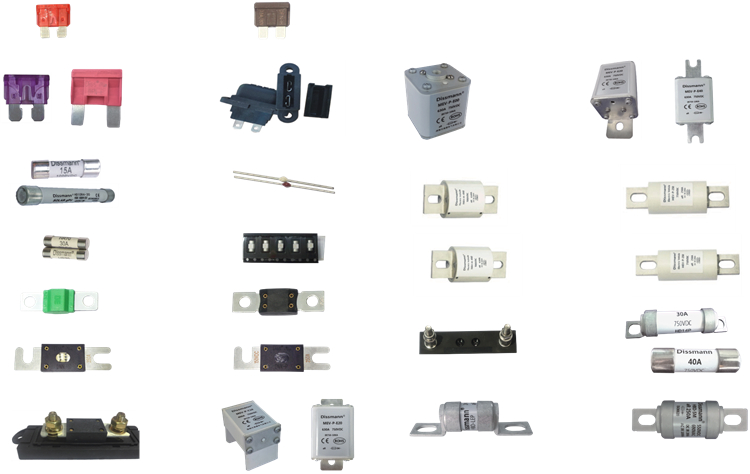

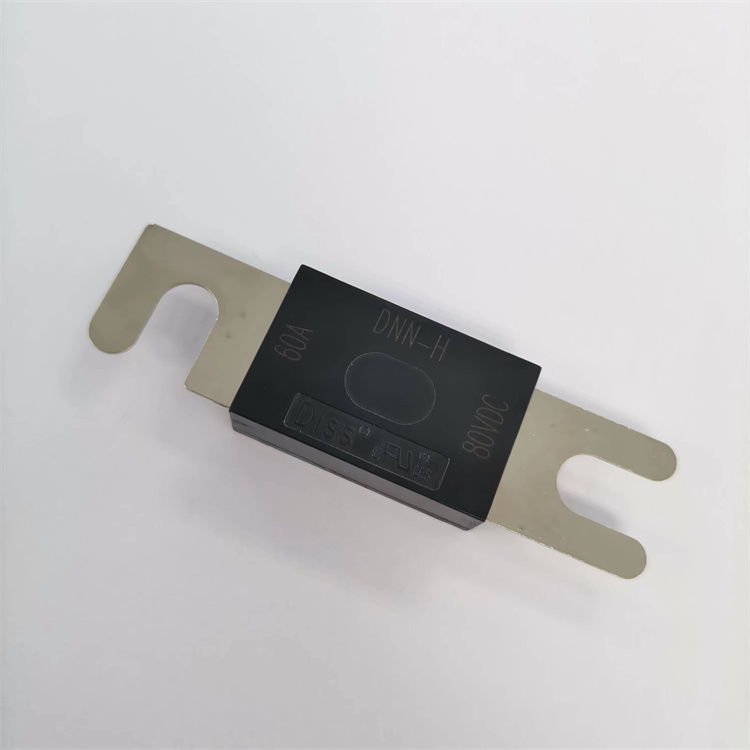

More other fuses produced by our factory:

Dissmann Blade Type Fuse DC150V Flat Plug For Battery Storage System

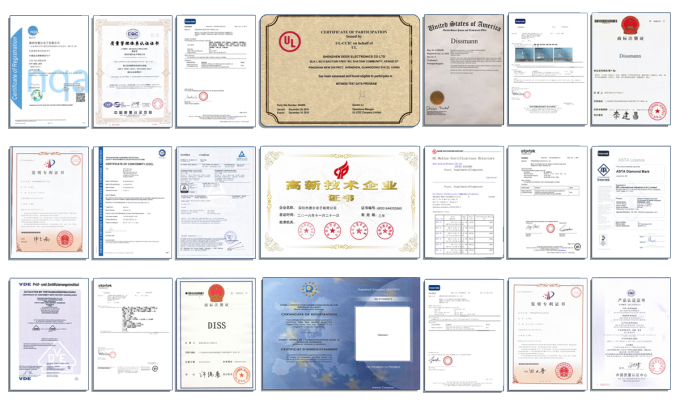

Certifications we can supply for the fuse products:
