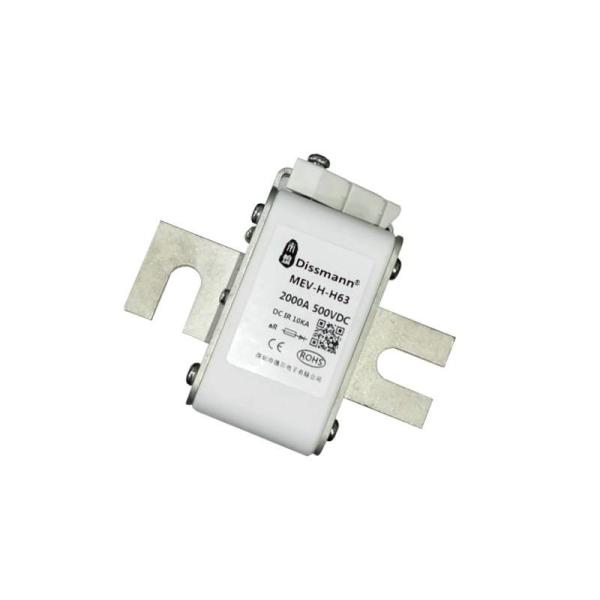

High Current Semicomductor Protection Fuse DC10KA Breaking Capacity

Name: High Current Semicomductor Protection Fuse DC10KA Breaking Capacity
Brand: Dissmann
Price: 1 USD

Quality High Current Semicomductor Protection Fuse DC10KA Breaking Capacity wholesale

Brand Name : Dissmann

Model Number : MEV-H-H63

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : fiber pipe

Colour : White

Rated Voltage : 500VDC

Rated Current : 200A

Breaking Capacity : DC10KA

Standard : UL248-13、ISO8820、 JASO-D622、IEC60269、ROHS

Usage : Semiconductor protection,charging pile

Keyword： : Semiconductor protection fuse

Contact Now

Semiconductor Protection Fuse High Current Fuse European Square Fuse

Material:
Noumenon:
Pins: Copper alloy

Product Presentation:

Rated Voltage

DC500V,AC690V

Type Protection

Rated
Current

800A-1800A

Breaking Capacity

DC10KA

(time constant≤10ms)

Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269

EU and RoHS Directive

Remarks

—

Overall dimensions of the product(mm)

Product type

Model	Product code	Rated current ( A )	I²t(A²Sec)		Power consumption ( W )
Model	Product code	Rated current ( A )	Pre-Arc	After-Arc	Power consumption ( W )
MEV-H-H63	MEV-H-H63-800	800A	69200	465000	115
	MEV-H-H63-900	900A	100000	670000	120
	MEV-H-H63-1000	1000A	140000	945000	125
	MEV-H-H63-1100	1100A	190000	1300000	130
	MEV-H-H63-1250	1250A	280000	1900000	140
	MEV-H-H63-1400	1400A	370000	2450000	155
	MEV-H-H63-1500	1500A	460000	3100000	160
	MEV-H-H63-1600	1600A	580000	3900000	160
	MEV-H-H63-1800	1800A	880000	5200000	165

Tag: safety fuse 1000v, China, manufacturers, suppliers, factory, Built-in Fuse For Multimeter Voltage Meter, 5G Telecommunications Solutions Fuse, Fuse for BDU, Fuses for Automotive Aftermarket, Bolt Down Fuse, 5G Communication Fuse

Product Tags:

CCC Semicomductor Protection Fuse

DC10KA Semicomductor Protection Fuse

DC10KA High Current Fuse
