Dissmann® DC80V Flat Plug with Fuse Holder for Electric Vehicle Semiconductor Protection made in China

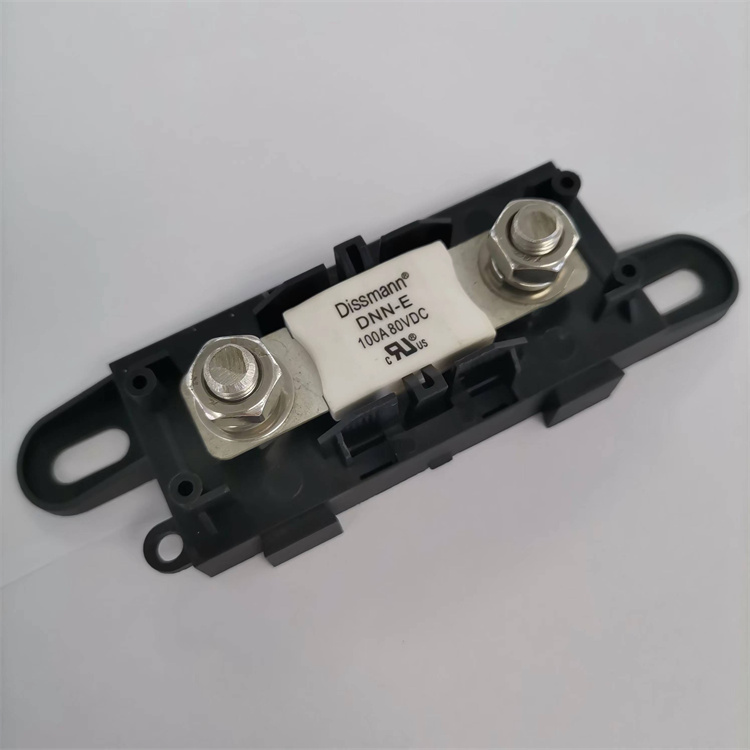

DC80V Flat plug fuse and fuse holder

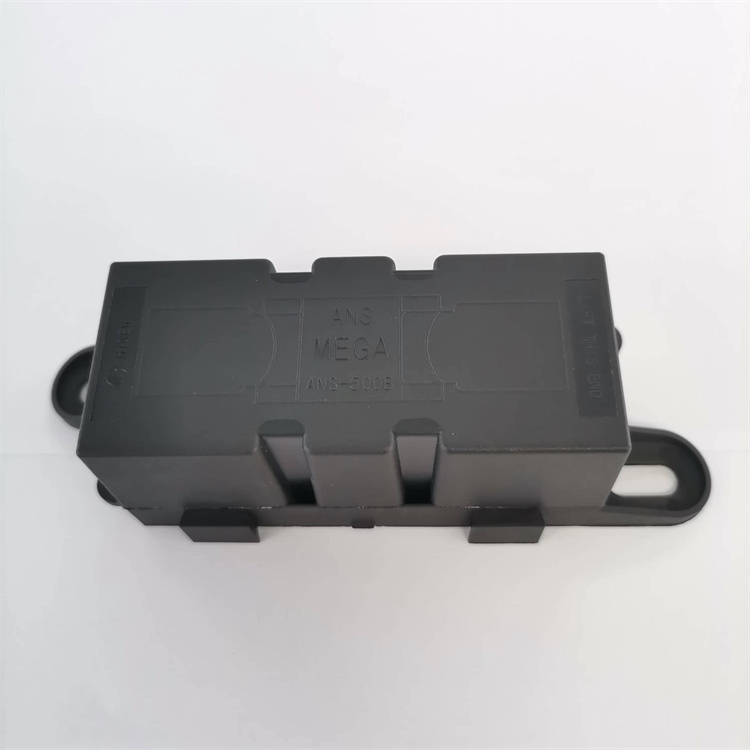

Appearance of the fuse holder
Basic information of the fuse:
- Type:Flat plug type automobile fuse (bolt type installation)
- Dimensions and performance conforming to UL248
- Rated voltage: DC32V/58V/80V,
- Rated current: 10A~500A,
- Breaking capacity: DC2700A
- Conform to EU and China RoHS directives
- The executive standard is UL248-13, UL certification number: E496054
- This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.
Physics drawing of the dimension:
Notice:When the Rated current ≤275A,the contact foot is thick 0.8mm；
when the Rated Current ≥300A,the contact foot is thick 1.5mm.
Ordinary produc type you can choose from our factory:
| Rated current | Rated voltage | Rated voltage |
| 10A～500A | 32Vdc | 2700A |
| 10A～500A | 58Vdc | 2700A |
| 10A～500A | 80Vdc | 2700A |
The materials of the fuse :
| Component name | Material |
| Contact the foot | copper alloy |
| Noumenon | Ceramics |
Different size of the flat plug fuses for electric Vehicle and semiconductor protection
Large/mediun/mini size DC32/58/80V Flat plug fuse
More other fuses and fuse holder you can choose from our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
Certifications of the fuse products:
Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
