GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage

Name: GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage
Brand: Dissmann
Price: 1 USD

Quality GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage wholesale

Brand Name : Dissmann

Model Number : 10X85

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 1500VDC

Rated Current : 1A-30A

Breaking Capacity : 10kA

Operating Class : gPV

Contact Now

GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage

Material:
Noumenon: Ceramic
Pins: Copper alloy

Features:

Semiconductor Fuses 10 Mm X 85 Mm
Many kinds of Semiconductor Fuses 10 Mm X 85 Mm
Current rating: 15A
Voltage rating:1500VDC

Breaking capacity:10kA

Product Presentation:

Rated Voltage

DC1500V

Characteristic

gPV/aR

Rated Current

1A-40A

Breaking Capacity

DC10KA

Meet the Requirement

UL248-13,IEC60269.6,

EU and Rosh Directive

Remarks

UL,TUV

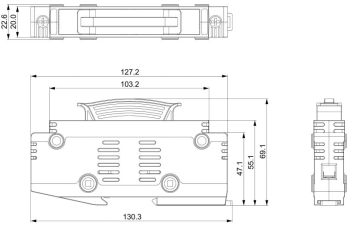

Overall dimensions of the product(mm)

GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage

Performance criteria of Semiconductor Fuse

Blowing current	Fusing time
200%	＜4min
135%	＜1h
113%	＞1h
100%	＞4h

Current characteristic curve

GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage

Product type of Semiconductor Fuse

Model	Rated current	Rated voltage	Breaking capacity
HD10R4/HD10W4	1A～20A	1500Vdc	10KA
HD10R4.J03/HD10W4.J03	1A～40A	1500Vdc	10KA
HD10R5	1A～20A	1500Vdc	10KA
HD14R6	20A～40A	1500Vdc	10KA
HDPV5	40A	1500Vdc	10KA

Test equipment

GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage

Production equipment

Our Certificates
