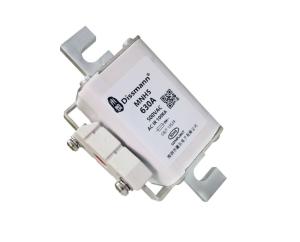

Semiconductor Automotive Bolt Down Fuse 500VAC Rated Voltage:

Name: Semiconductor Automotive Bolt Down Fuse 500VAC Rated Voltage
Brand: Dissmann
Price: 1 USD

Quality Semiconductor Automotive Bolt Down Fuse 500VAC Rated Voltage: wholesale

Brand Name : Dissmann

Model Number : MNH5

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Usage : PV,charging pile，semiconductor protection

Breaking Capacity : DC100KA

Rated Voltage : 500VAC

Rated current : 630A

Keyword： : Photovoltage fuse

Size : 8mm

Contact Now

Automotive Bolt Down Fuse Semiconductor Fuse High Breaking Capacity Fuse

Material:
Noumenon: Ceramics
Pins: Zinc Alloy

Product Presentation:

Rated Voltage

额定电压

AC690V/DC440V

或低于

Type Protection

保护类别

Rated Current 额定电流

500A-1250A

Breaking Capacity

分断能力

AC690V/100kA DC440V/50kA

(时间常数15-20ms)

Meet the Requirement

符合要求

UL248-13,IEC60269.4

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

Semiconductor Automotive Bolt Down Fuse 500VAC Rated Voltage:

尺码	A(Max)	B±2.5	C±1.5	D±1.5	E(Max)	F(Max)	K	H±0.2	G±0.5
4	90	150	100	100	120	25	62±2.5	8	16
4a(500-1250A)	90	-	100	100	120	30	84±3	6	-

产品型号/Product type

Model 型号	Rated Current 额定电流A	I²t(A²s)		Power dissipation 功耗W	Size code 尺寸代码
Model 型号	Rated Current 额定电流A	弧前	总	Power dissipation 功耗W	Size code 尺寸代码
MNH5-G500A	500	975	2250	60	4
MNH5-G630A	630	1732	4520	70
MNH5-G800A	800	3150	8725	90
MNH5-G1000A	1000	5665	15700	100
MNH5-G1250A	1250	12100	28300	110
MNH5-AG500A	500	975	2250	60	4a
MNH5-AG630A	630	1732	4520	70
MNH5-AG800A	800	3150	8725	90
MNH5-AG1000A	1000	5665	15700	100
MNH5-AG1250A	1250	12100	28300	110

Semiconductor Automotive Bolt Down Fuse 500VAC Rated Voltage:

Test equipment

Production equipment
