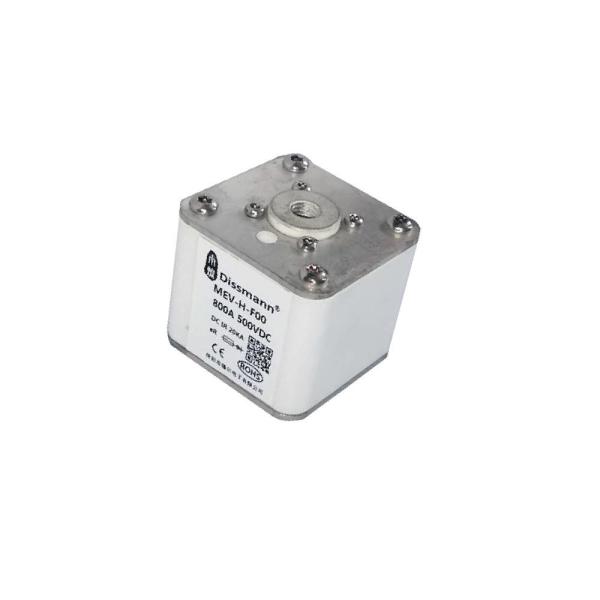

800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse

Name: 800A Semiconductor Fuses IEC60269 High Breaking Capacity Fuse
Brand: Dissmann
Price: 1 USD

Quality 800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse wholesale

Brand Name : Dissmann

Model Number : MEV-H-F00

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : electric wood shell

Colour : White

Rated Voltage : 500VDC

Rated Current : 800A

Breaking Capacity : DC20KA

Standard : UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs

Usage : Semiconductor fuse,charging pile fuse,PV

Keyword： : Semiconductor fuse

Contact Now

European Square Fuse High Breaking Capacity Fuse 500volt DC Fuse

Material:
Noumenon: electric wood shell
Pins: Copper alloy

Features:
Automotive Cartridge Fuse
Many kinds of Automotive Cartridge Fuse
Current rating: 800A
Voltage rating: 500VDC
Breaking capacity:DC20KA

Product Presentation:

Rated Voltage

DC500V,AC690V

Type Protection

Rated Current

400A-1250A

Breaking Capacity

DC10KA

(time constant ≤10ms)

Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269

EU and RoHS Directive

Remarks

—

Product type:

Model	Product code	Rated current ( A )	I²t(A²Sec)		Power consumption ( W )
Model	Product code	Rated current ( A )	Pre-Arc	After-Arc	Power consumption ( W )
MEV-H-F00	MEV-H-F00-400	400A	13500	91000	65
	MEV-H-F00-450	450A	17000	120000	70
	MEV-H-F00-500	500A	25000	170000	72
	MEV-H-F00-550	550A	34000	230000	75
	MEV-H-F00-630	630A	52000	350000	80
	MEV-H-F00-700	700A	69500	465000	85
	MEV-H-F00-800	800A	105000	725000	95
	MEV-H-F00-900	900A	155000	850000	100
MEV-H-G00	MEV-H-G00-400	400A	11000	74000	65
	MEV-H-G00-450	450A	16000	110000	70
	MEV-H-G00-500	500A	21500	145000	75
	MEV-H-G00-550	550A	28000	190000	80
	MEV-H-G00-630	630A	41000	275000	90
	MEV-H-G00-700	700A	60000	400000	95
	MEV-H-G00-800	800A	86000	575000	105
	MEV-H-G00-900	900A	125000	840000	110
	MEV-H-G00-1000	1000A	180000	1250000	115
	MEV-H-G00-1100	1100A	245000	1600000	120
	MEV-H-G00-1250	1250A	365000	2400000	130

Our certificates:
800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse
Test Equipment

Product Equipment
