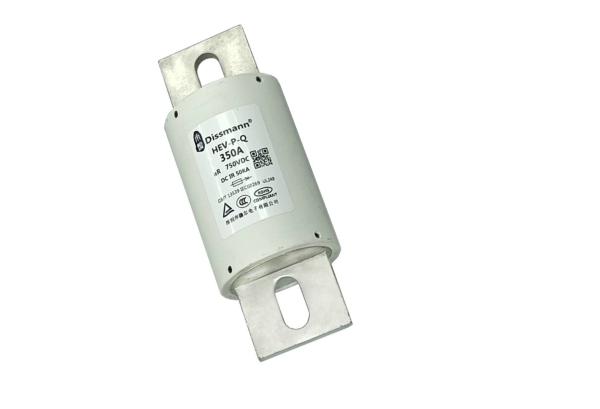

Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current

Brand Name : Dissmann

Model Number : HEV-P-Q

Certification : UL,CCC,TUV

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : fiber Tube

Colour : White

Rated Voltage : 750VDC

Current Rating : 350A

Usage : Automotive,Charging pile,PV

Keyword : Industrial power fuse

Contact Now

Charging pile fuse Electricel fuse high breaking capacity fuse

Material:
Noumenon: fiber Tube
Pins: Alloy

Features:
Industrial Power Fuse
Many kinds ofIndustrial Power Fuse
Current rating: 350A.
Voltage rating: 750VDC

Product Presentation:

Rated Voltage

AC690V/DC700V or lower

(IEC),750V(UL)

Type Protection

 aR
Rated Current 5A-800A

Breaking Capacity

AC100KA,DC50KA

(time constant≤15ms)

Meet the Requirement

UL248-20,ISO8820,JASO-D622,EU and Rosh Directive

Remarks

 gR

Overall dimensions of the product(mm)

Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HT1 73.5 14.3 48 60.5 63.5 6.5 10.3 1.6 8
HT2 110 22 69 84 95.5 9 15 3.3 14.75
HT3 129 36.5 72 88 109 10.5 25 6 20.7
HT4 129 50 72 88.6 109 10.5 38 6 20.7
HT5 180 63 72 106 145 13.5 50 10 33

Product type

Model Rated Current I2t(A²s) Power dissipation Size code Install
Pre-arc Total
HEV-P-Q-5 5A 1.6 10 1.5 HT1 Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10 10A 3.5 19 3.8
HEV-P-Q-15 15A 9.5 73 5.4
HEV-P-Q-20 20A 25.5 176 6
HEV-P-Q-25 25A 42 330 7
HEV-P-Q-30 30A 55 420 9
HEV-P-Q-35 35A 33 160 11 HT2 Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40 40A 75 315 12
HEV-P-Q-45 45A 95 430 12
HEV-P-Q-50 50A 135 590 12.5
HEV-P-Q-60 60A 205 940 14.8
HEV-P-Q-70 70A 300 1980 17.5
HEV-P-Q-80 80A 350 2350 20.5
HEV-P-Q-90 90A 410 2630 24
HEV-P-Q-100 100A 530 3450 26.5
HEV-P-Q-125 125A 1700 7200 27 HT3 Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150 150A 2750 11000 34
HEV-P-Q-175 175A 4100 16000 35
HEV-P-Q-200 200A 5400 21000 42
HEV-P-Q-225 225A 7500 30000 45
HEV-P-Q-250 250A 9700 41000 47
HEV-P-Q-275 275A 12000 58000 51
HEV-P-Q-M300 300A 16500 70000 56 HT4
HEV-P-Q-M325 325A 20000 82000 61
HEV-P-Q-M350 350A 23000 94000 63
HEV-P-Q-M400 400A 30000 123000 76
HEV-P-Q-300 300A 16500 70000 56
HEV-P-Q-325 325A 20000 82000 61
HEV-P-Q-350 350A 23000 94000 63
HEV-P-Q-400 400A 30000 123000 76
HEV-P-Q-450 450A 35000 135000 95
HEV-P-Q-500 500A 44000 165000 108
HEV-P-Q-600 600A 48000 210000 115 HT5 Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700 700A 53000 298000 125
HEV-P-Q-800 800A 75000 445000 140
Test equipment
Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current
Production equipment
Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current
Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current
Our Certificates
Charging Pile Industrial Power Fuses High Breaking Capacity 350A Current
