Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

Brand Name : Dissmann

Model Number : DFN-A-30

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated Voltage : 32VDC

Rated Current : 1A-40A

Type Protection : Fast-acting

Breaking Capacity : DC1000A

Size : Medium Automotive Blade Fuse

Contact Now

Dissmann® UL Certified 32VDC Automotive Blade Fuse ATC/ATO Fuse for Electric Vehicle

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

Specifications of the DFN-A series Automotive Blade Fuse:

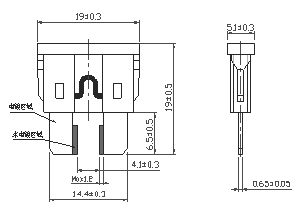

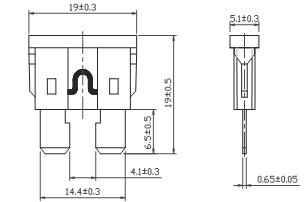

1. Dimension of the fuse:

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

2. Product type of DFN-A Series fuses:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

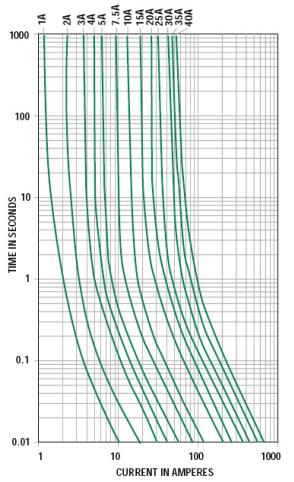

3.Current Characteristic curve of the fuse:

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

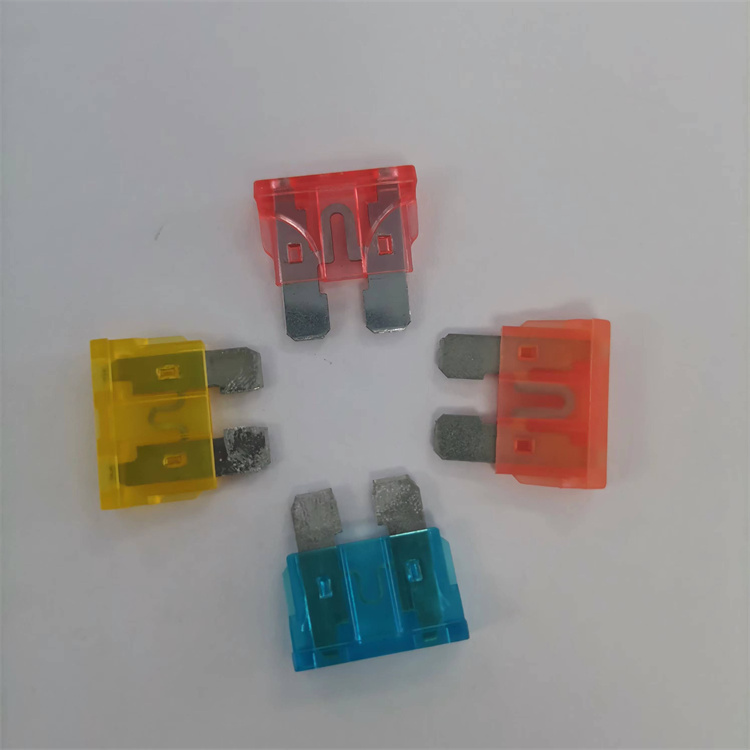

4.Dissmann® automotive blade fuse, include mini size,medium size,large size:

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

6.Other Fuses and fuse holders in our Factory:

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

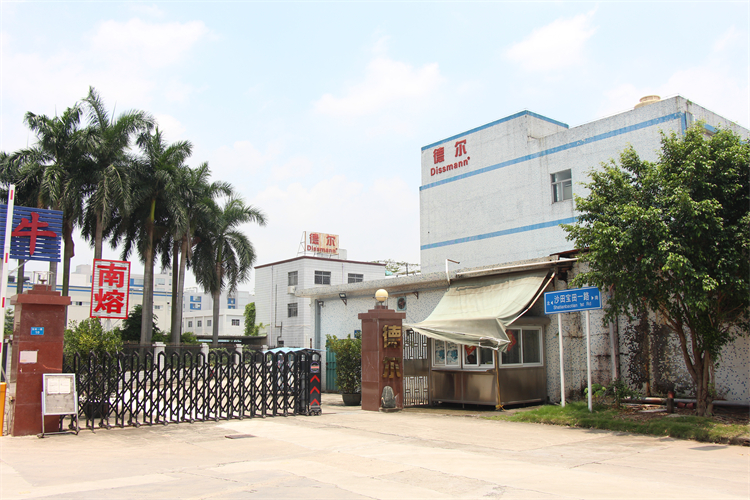

8.Dissmann® fuse Factory Display:

Dissmann 32VDC Automotive Blade Fuses , ATC ATO Fuse For Electric Mobility

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
