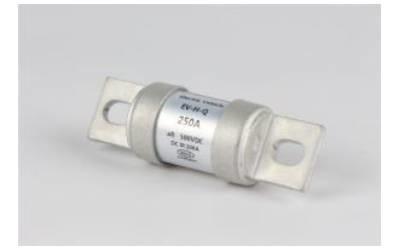

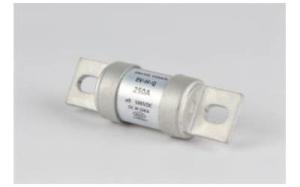

DC500V Automotive Battery Fuse , Ceramic DC20KA Safety EV Fuses

Name: DC500V Automotive Battery Fuse Ceramic DC20KA Safety EV Fuses
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : EV-H-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Rated Current : 10A-500A

Rated Voltage : AC/DC500V

Breaking Capacity : DC20KA

Type of protection : aR

Application : Short circuit protection

Keyword : Bolt type fuse

Executive standard : UL248-20、ISO8820、JASO-D622、RoHS compliant

Contact Now

DC1000V Automotive battery fuse EV-H-Q type

Product introduction of the EV-H-Q

We are Dissmann EV series fuse all approval by UL248 standard,suitable use for short circuit and backup protection of electric vehicle driving power system, energy storage and power batteries, energy storage capacitors, power conversion systems, frequency conversion controllers,chargers,wires and other vehicle devices and equipment.The rated current range from 10A-500A,rated voltage is DC500V,breaking capacity up to DC20KA.The installation method available in bolt.

Structure of the EV-H-Q fuse

Component	Material
Melt	Copper or silver
End cap	Copper alloy tin plating
Mounting feet	Copper alloy tin plating
Ontology	ceramic pipe
Stuffing	Quartz sand

Dimension of the MEV fuse

DC500V Automotive Battery Fuse , Ceramic DC20KA Safety EV Fuses

Nomal working conditions

Normal use conditions: -5℃～60℃.

Allowable use conditions: -55℃～120℃.

FAQ

Question :What factors affect the life of the fuse?

Answer:Generally speaking, the ambient temperature of the fuse installation place and the impact current in the circuit will affect the life of the fuse. Therefore, we generally consider the pulse current of the customer to select the fuse with the appropriate current.
