DC50KA High Breaking Capacity Fuse Dissmann MEV Series 500VDC 700Ampere Fuse Made in China

Product basic information

• Structure and performance conform:GB13539,IEC60269,UL248
• Rated Voltage: DC500V or lower
• Rated Current:700A; Class of Protection:aR; Breaking Capacity:DC50kA(time constant≤10ms)
• Compliance with EU and China RoHS directives
• Compliance with the requirements of QC/T413,ISO8820,JASOD622
• This series of products are European Square bolt-connected fast fuses, which have the characteristics of small size, and high reliability. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as short-circuit and backup protection for electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage capacitor, inverter controller, charger, MSD, wire and other automotive devices and equipment.

Product characteristic data:

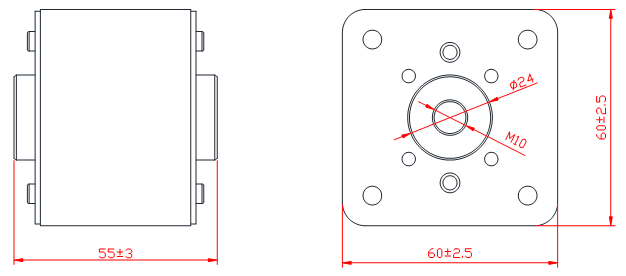

Dimension of the fuse:

Normal use conditions and parameter correction

• The fuses work normally under the following normal conditions and no any additional correction required.
• When it exceeds the normal using conditions, some parameters or consultation may need to be corrected if they are within the allowable using conditions. If it is beyond the scope of allowable using conditions, you should consult our company, and carry out the work adaptability evaluation and test of the conditions.
• It is recommended that the current value of long-term current shall not be greater than 80% of the rated current.

Ambient Air Temperature

Normal using conditions: -5°C ~ 40°C.

Permitted conditions: -40℃～85℃.

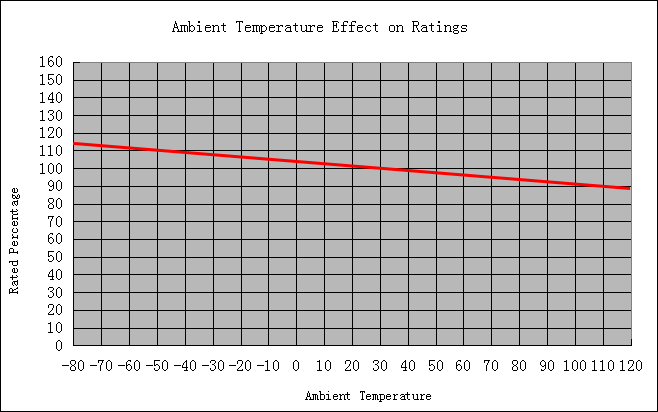

Parameter correction for ambient air temperature changes: working below -5°C, the pre-arc time of the fuse's low overload current is slightly extended, and the rated current is slightly increased. But unless above -5℃ is not in the working range, generally do not consider increasing the rated current of the fuse. The fuse works above 40℃, the rated current needs additional correction, and the correction factor is -Kt.

Note 1: The value of Kt has taken into account the influence of the rated current safety margin of the fuse under normal operating conditions.

Note 2: The ambient air temperature needs to last for more than 1 to 2 hours before it has a significant impact.
