DC500V High Current Fuses TUV Certified ESS Fuses EV Charging Pile Fuses Supplier

Name: DC500V High Current Fuses TUV Certified ESS Fuses EV Charging Pile Fuses Supplier
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : MEV-H-F70

Certification : TUV/CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Color : White

Rated Current : 400A-1250A

Rated Voltage : DC500V

Breaking Capacity : DC50KA

Category : aR

Contact Now

500VDC MEV series fuses mainly designed for EV charging pile

Product information of the MEV series fuses

This MEV series fuses suitable line in rated current range of 400A-1250A,rated voltage of DC500V,breaking capacity up to DC50KA.This product is bolt type partial range protection fuse, suitable for rail transit, electric vehicles, ships and other industries. It can be used as short-circuit overcurrent and backup protection for energy storage systems, power systems, wires and other devices and equipment.

Product characteristic of the MEV series fuses

Model	Rate Current (A)	I2t (A2Sec)		Power Loss (W)	Installation
		Pre-Arcing	Total	In
MEV-H-G70- 700	700A	69,500	465,000	119	Install Bolt M10,
					Recommend Torque: 21±Nm

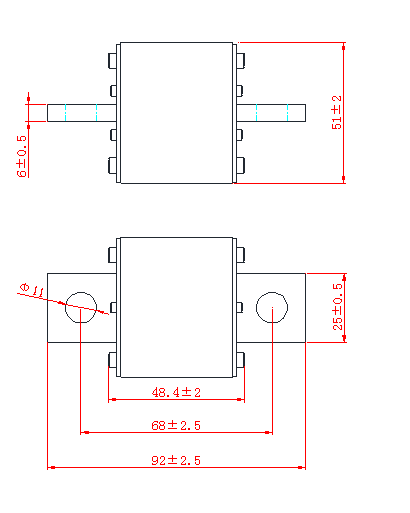

Dimension of the MEV series fuses

DC500V High Current Fuses TUV Certified ESS Fuses EV Charging Pile Fuses Supplier

Atmospheric conditions

Normal work conditions:

The air is clean; its relative humidity is not more than 50% when highest temperature 40°C.

When lower temperature, the relative humidity can be a little higher, for example, at 20°C, relative humidity can be 90%.

In these conditions, because temperatures change, moderate condensation may happen by accident.

Permissible working conditions:

Without obvious condensation, the relative humidity can reach 95%.

FAQ

Question:Which products are applicable to this MEV series products?

Answer:It can be used as short-circuit overcurrent and backup protection for energy storage systems, power systems, wires and other devices and equipment.
