Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified

Product Categories
Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions
Contact Now

Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified

  • 1
  • 2

Brand Name : Dissmann

Model Number : HBD-EPL

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Color : White

Rated Current : 6A-700A

Rated Voltage : DC750V

Breaking Capacity : DC20KA

Category : aR

Executive Standard : UL248-20、ISO8820、JASO-D622、GB/T13539、RoHS compliant

Appliaction : electric vehicle drive power system, power conversion system

Contact Now

DC20KA BS88 series ceramic fuses in China

Product description of BS88 series fuse

Rated Voltage

 DC750V or lower

Type Protection

 aR
Rated Current 6A-700A

Breaking Capacity

 DC20KA

Meet the Requirement

UL248-20,ISO8820,JASO-D622,GB/T13539,RoHS compliant

Remarks

 UL,CCC

Application of the BS88 series fuse

This BS88 series fuses for applications in Electric Vehicles (EV) or Hybrid EV are relatively new in the industry and they could be regarded as a crossover product between low voltage fuse and automotive fuse.

Dimension of the BS88 series fuse

Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified

Electrical parameters

Model Code

Rated Current

A

100% voltage drop

mV
HBD-EPL HBD-16EPL 16 266.6
HBD-EPL HBD-20EPL 20 317.4
HBD-EPL HBD-32EPL 32 253.5
HBD-EPL HBD-40EPL 40 224.4

FAQ

Question:Is this BS88 series products sufficient inventory?

Answer:Most of our BS88 series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.


Product Tags:

Hybrid EV Ceramic Fuses



RoHS Compliant Ceramic Fuses



Ceramic Automotive Fuses DC20KA


Quality Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified wholesale

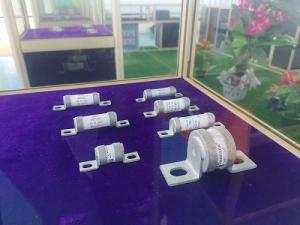

Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified Images
