Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

  • 1
  • 2

Brand Name : Dissmann

Model Number : MEV series 1000VDC

Certification : TUV

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Protection Type : aR

Materials : Ceramic

Breaking Capacity : DC50KA

Certifications : TUV

Contact Now

1000VDC Dissmann MEV Series Square fuses High Voltage Ceramic Automotive Fuse For Charging Pile

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

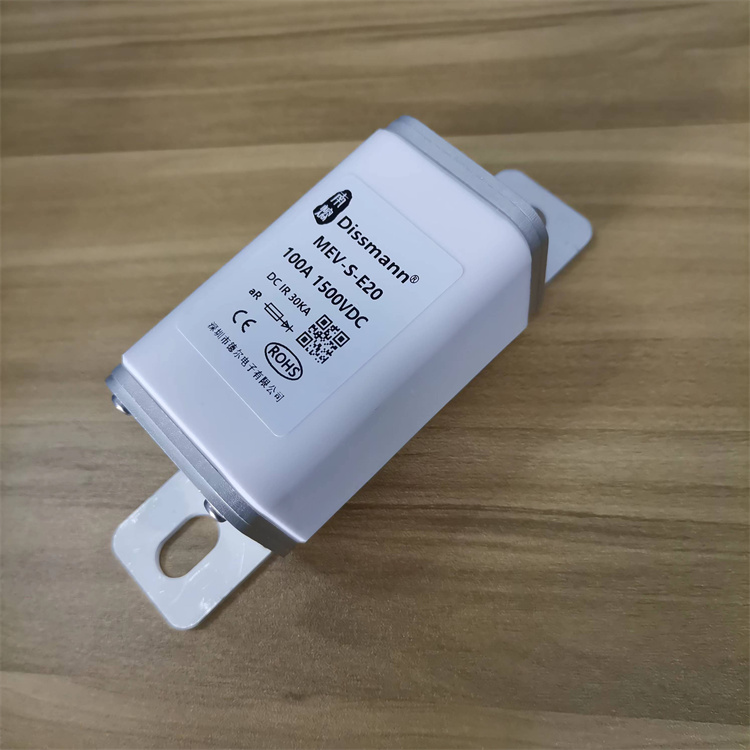

Dissmann Fuse MEV-S-E20 1500VDC 100A

Basic information of the MEV series square ceramic fuse:

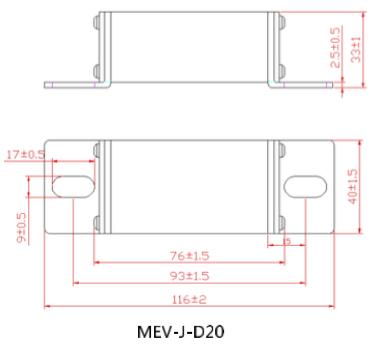

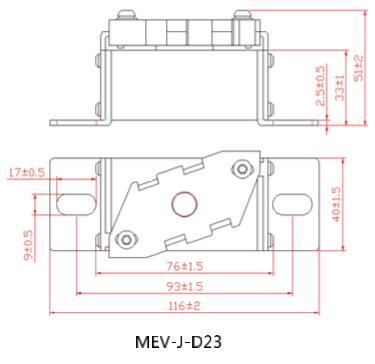

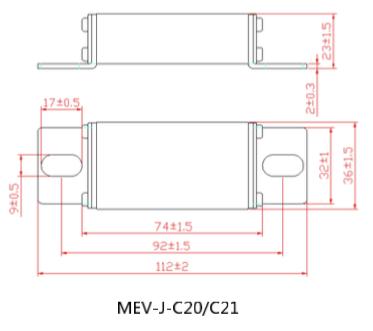

1.MEV-J C20/D20/D23 series Rated Voltage:1000VDC,Rated Current:50A-500A,Breaking capacity:DC50KA, TUV certification:B 113737 0001 ;

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging PileDissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

MEV-J 1000VDC
Product Code Rated Current
A		 I²t(A²Sec) Power Dissipation
Pre-arc Total W
MEV-J-C20
MEV-J-D23		 50 140 680 13
63 250 1300 15
80 510 2550 20
100 1100 5200 28
125 2000 9800 32
160 4100 20000 38
200 8500 42000 44
250 13000 60000 48
300 18000 90000 53
315 23000 110000 60
MEV-J-D20
MEV-J-D23		 350 24000 125000 70
400 38000 190000 80
450 53000 260000 85
500 69500 340000 95

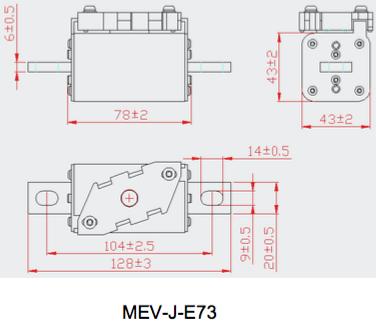

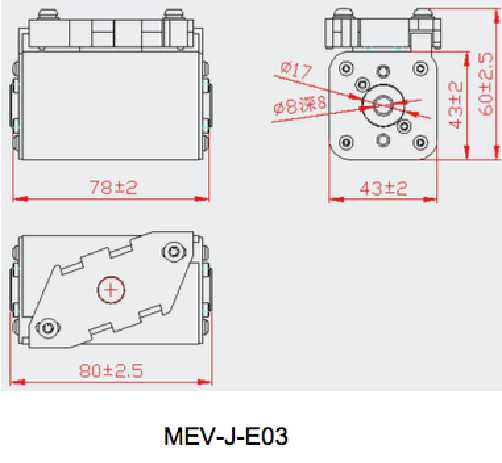

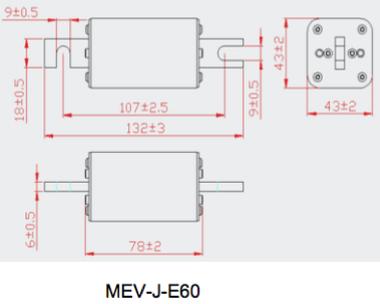

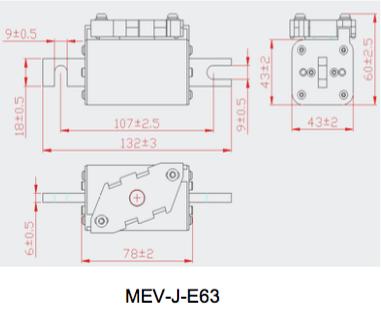

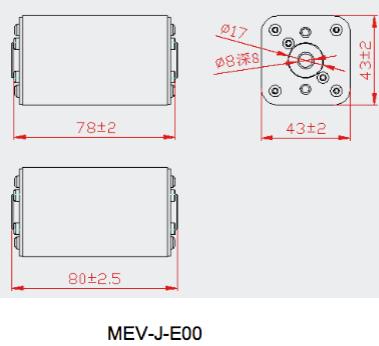

2.MEV-J E00/E03/E60/E63/E70/E73 series Rated Voltage:1000VDC,Rated Current:32A-400A,Breaking capacity:DC50KA;

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

MEV-J 1000VDC
Product Code Rated Current
A		 I²t(A²Sec) Power Dissipation
Pre-arc Total W
MEV-J-F00
MEV-J-F03

MEV-J-F60
MEV-J-F63

MEV-J-F70
MEV-J-F73		 160 2800 19000 50
200 5000 31500 60
250 9000 60000 68
315 16000 107000 81
350 22000 145500 86
400 32000 214500 92
450 44500 297000 9
500 62000 414000 103
550 82000 548000 109

More products you can choose from our factory:

Dissmann MEV Series Square Fuses 1000VDC High Voltage For Charging Pile

The products list showed as below:

  • 1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
  • 2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
  • 3. Energy Storage Battery Fuse (MEV Series)
  • 4. Power Fuse (HEV Series,BS88 Series,HH Series)
  • 5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
  • 6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
  • 7. 5G Telecom Fuse (HR70/HRP70 Series)
  • 8. British Standard Fuse Series (BS1362/BS646)
  • 9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
  • 10. Fuse blocks and holders
