58VDC Ceramic Automotive Fuses , 100A Electric Vehicle Fuses Low Voltage

Name: 58VDC Ceramic Automotive Fuses 100A Electric Vehicle Fuses Low Voltage
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : DNQ-A/X/H

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Color : White

Rated Current : 5A-200A

Rated Voltage : 32VDC/58VDC/80VDC

Breaking Capacity : DC1500A

Category : aR

Keyword : Electric Vehicle fuse

Application : short-circuit protection fuses of pure electric vehicles and hybrid electric vehicles

Contact Now

58VDC ceramic automotive fuses supplier in China

Product details of the 58VDC ceramic automotive fuses

This 58VDC ceramic automotive fuses is our DNQ series flat type fuses,the DNQ series are suitable line in circuit of 32VDC/58VDC/80VDC,rated current range of 5A-200A,breaking capacity up to DC1500A.The dimension and performance conform to UL248-20,ISO8820,JASO-D622,RoHS compliant and the installation available in M6 bolt.

Product type of the DNQ series fuses

Model	Rated current	Rated voltage	Breaking Capacity
DNQ-A	5A～200A	32Vdc	1.5KA
DNQ-X	5A～200A	58Vdc	1.5KA
DNQ-H	5A～200A	80Vdc	1.5KA
DNM-A	5A～200A	32Vdc	1.5KA
DNM-X	5A～200A	58Vdc	1.5KA
DNM-H	5A～200A	80Vdc	1.5KA

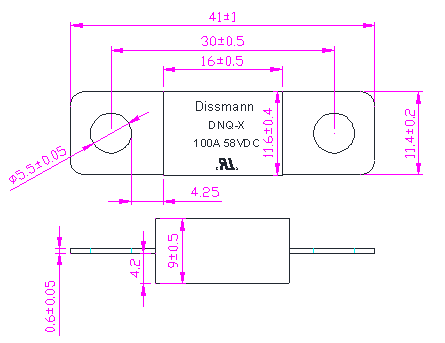

Dimension of the DNQ series fuse

58VDC Ceramic Automotive Fuses , 100A Electric Vehicle Fuses Low Voltage

Performance test requirements of the DNQ series fuse

Current testing (A)	minimum time (s)	Max time (s)
75%	360000	-
200%	0	300
600%	0	1

Material of the DNQ series fuse

Component name

Material

Contact the foot

Kirsite

Copper alloy

Noumenon

Ceramics
