MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

Name: MEV DC1000V High Voltage Fuse Ceramic Automotive Fuses With Indicator
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : MEV-J-F73/G73

Certification : UL248-13、ISO8820、JAS0-D622、IEC60269、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated Voltage : DC/AC1000V

Rated Current : 160A-800A

Meet the Requirement : UL248-13,ISO8820,JASO-D622,IEC60269,Rohs

Type Protection : aR

Breaking Capacity : DC10KA(Time constant<10ms)

Contact Now

Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price

^{Ceramic Automotive Fuse MEV-J-F73/G73 AC/DC1000V(160A-800A) Fuse}

^{1.Basic information of the Ceramic Automotiva Fuse:}

Rated Voltage	DC/AC1000V	Type Protection	aR
Rated Current	160A-800A	Breaking Capacity	DC10KA(Time constant<10ms)
Meet the Requirement	UL248-13,ISO8820,JASO-D622,IEC60269,Rohs	Remarks	----

2.Overall Dimensions of the Ceramic Automotive Fuse:

MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

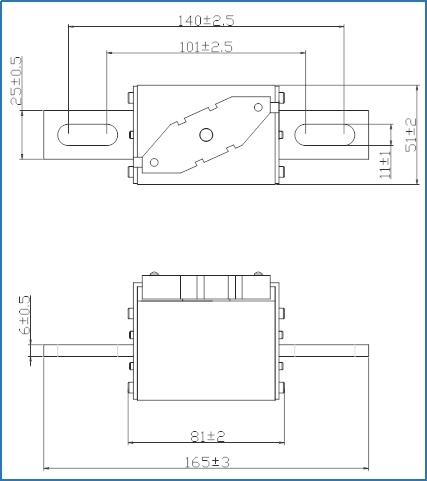

Size Model:MEV-J-73

MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

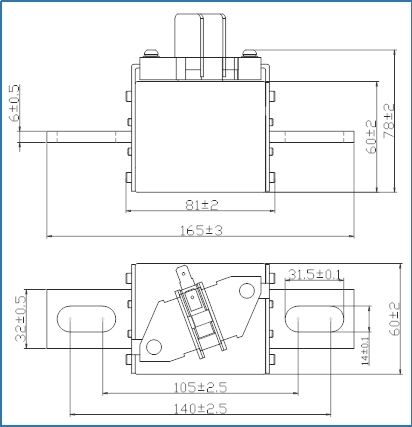

Size Model:MEV-J-G73

Difference between the two models is the blade shapes,So the installation method will be different.

3.Product Type of the Ceramic Automotive Fuse:

Model	Product code	Rated current A	I²t(A²Sec)		Power consumption W
Model	Product code	Rated current A	Pre-arc	Total	Power consumption W
MEV-J-F73	MEV-J-F73-160	160	2800	19000	50
	MEV-J-F73-200	200	5000	31500	60
	MEV-J-F73-250	250	9000	60000	68
	MEV-J-F73-315	315	16000	107000	81
	MEV-J-F73-350	350	22000	145500	86
	MEV-J-F73-400	400	32000	214500	92
	MEV-J-F73-450	450	44500	297000	99
	MEV-J-F73-500	500	62000	414500	103
	MEV-J-F73-550	550	82000	548000	109
MEV-J-G73	MEV-J-G73-250	250	9000	61000	72
	MEV-J-G73-315	315	17000	112000	85
	MEV-J-G73-350	350	22000	150000	92
	MEV-J-G73-400	400	32000	210000	100
	MEV-J-G73-450	450	45000	298000	108
	MEV-J-G73-500	500	61000	402000	115
	MEV-J-G73-550	550	80000	521000	122
	MEV-J-G73-630	630	114000	744000	135
	MEV-J-G73-700	700	160000	1043000	141
	MEV-J-G73-800	800	240000	1562000	155

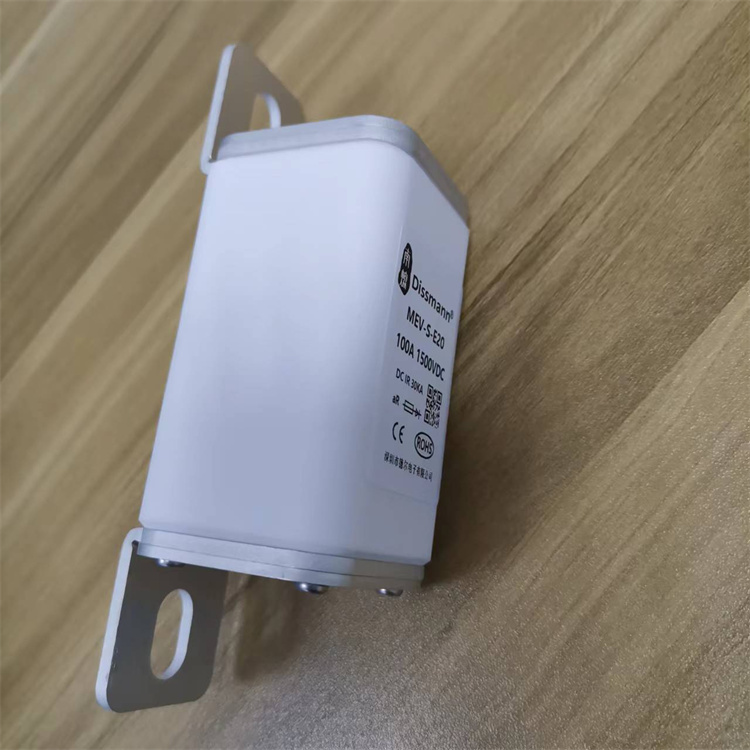

4.Physical Display of the Ceramic MEV Fuse:

MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

The Dissmann MEV Series Fuse are Ceramic Square Fuse.The Rated Voltage include: AC690V/DC750V (10A-400A); AC690V/DC750V(250A-500A);AC/DC600V(40A-630A);AC690V/DC750V(40A-630A);AC690V/DC500V(400A-1250A) etc.
