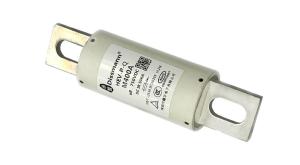

Chinese Professional Fuses Supplier DC750V Ceramic Automotive Fuses DC50KA Fuses

Name: Chinese Professional Fuses Supplier DC750V Ceramic Automotive Fuses DC50KA Fuses
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : HEV-P-Q

Certification : TUV/CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Color : White

Rated Current : 5A-800A

Rated Voltage : DC750V

Breaking Capacity : DC50KA

Keyword : High voltage EV fuses

Contact Now

Chinese HEV series fuses supplier equal to Sinofuse

Basic information of the HEV series DC750V fuses

Bolt installation Fast Fuse, Dimension and performance conform to GB13539, IEC60269, UL248
Rated Voltage: DC750V or lower
Rated Current:40A/ 50A/ 60A/ 70A/ 80A/ 125A/ 150A/ 200A/ 250A/ 300A
Protect grade: aR; Breaking capacity: DC50kA (Time Constant≤15ms )

Application of the HEV series DC750V fuses

Applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection.

Dimension of the HEV seriesDC750V fuses

Chinese Professional Fuses Supplier DC750V Ceramic Automotive Fuses DC50KA Fuses

Dimension code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HT2	110	22	69	84	95.5	9	15	3.3	14.75
HT3	129	36.5	72	88	109	10.5	25	6	20.7
HT4	129	50	72	88.6	109	10.5	38	6	20.7

Product type of the HEV series DC750V fuses

Model	Rated Current (A)	100% voltage drop (mV)	Dimension Code	Installation
Model	Rated Current (A)	100% voltage drop (mV)	Dimension Code	Installation
HEV-P-Q-40	40A	269	HT2	Install Bolt M8 Recommend Torque: 11Nm
HEV-P-Q-50	50A	248
HEV-P-Q-60	60A	220
HEV-P-Q-70	70A	265
HEV-P-Q-80	80A	280
HEV-P-Q-125	125A	170	HT3	Install Bolt:M10, Recommend Torque: 20N.m
HEV-P-Q-150	150A	267
HEV-P-Q-200	200A	168
HEV-P-Q-250	250A	229
HEV-P-Q-300	300A	362	HT4	Install Bolt:M10, Recommend Torque: 20N.m

FAQ

Question:How much is the installation bolt of this HEV product?

Answer:The rated current of the fuses related to the size.Rated current range of 40A-80A,Available in M8 bolt;Rated current range of 125A-300A,

Available in M10 bolt.
