High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

Product Categories
Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions
Contact Now

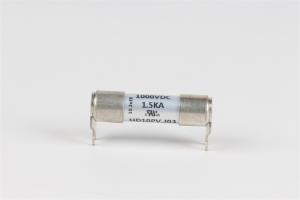

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

  • 1
  • 2

Brand Name : Dissmann

Model Number : 10 * 38mm HD10V.J03

Certification : UL : JDYX2.E343461/JDYX8.E343461

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated voltage : 750VDC

Rated current : 10A-50A

Protection type : aR

Breaking capacity : 10-20A 33KA / 25-50A 6KA

UL Certification No. : JDYX2.E343461/JDYX8.E343461

Contact Now

Dissmann Fuse 10*38mm Fuse High Breaking Capacity Two-pin Ceramic Fuse UL Certified made in China

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

  • Breaking capacity: 33KA @ 750VDC(10A-20A)/ 6KA@750VDC(25A-50A).
  • Protection type: aR.
  • Voltage Rating: 750 VDC.
  • Rated Current:10A-50A
  • UL Certification No.:JDYX2.E343461/JDYX8.E343461
  • RoHS Compliant.
  • Meet the requirements:UL248/ GB13593/ IEC60268/ GB31465

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

HD10V.J03 750VDC
Product code Rated Current
A		 I²t power consumption
(A²Sec) W
HD10V.J03 10 80 1.8
HD10V.J03 15 150 2.6
HD10V.J03 16 200 2.8
HD10V.J03 20 330 3.5
HD10V.J03 25 480 4.3
HD10V.J03 30 730 5.6
HD10V.J03 32 780 6.0
HD10V.J03 35 900 6.6
HD10V.J03 40 1400 7.6
HD10V.J03 50 2200 9.6

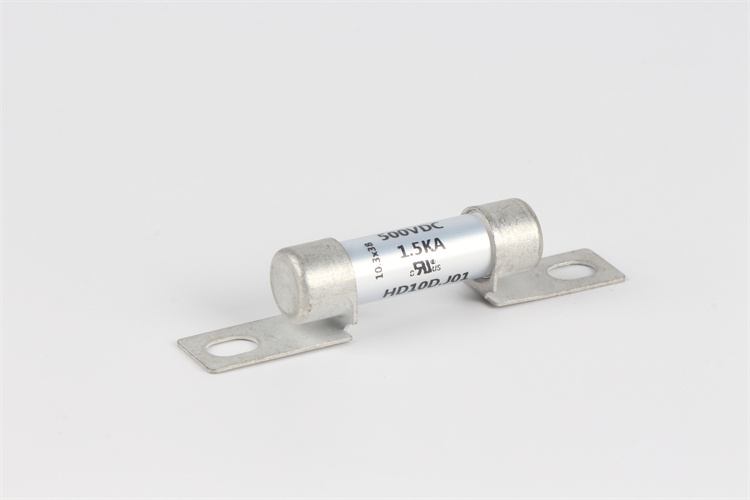

More 10*38mm fuse you can can choose:

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

  • Breaking capacity: 33KA @ 750VDC(10A-20A)/ 6KA@750VDC(25A-50A).
  • Protection type: aR.
  • Voltage Rating: 750 VDC.
  • Rated Current:10A-50A
  • UL Certification No.:JDYX2.E343461/JDYX8.E343461
  • RoHS Compliant.
  • Meet the requirements:UL248/ GB13593/ IEC60268/ GB31465

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

HD10V 750VDC
Product code Rated current A I²t power consumption
(A²Sec) W
HD10V 10 80 1.8
HD10V 15 150 2.6
HD10V 16 200 2.8
HD10V 20 330 3.5
HD10V 25 480 4.3
HD10V 30 730 5.6
HD10V 32 780 6.0
HD10V 35 900 6.6
HD10V 40 1400 7.6
HD10V 50 2200 9.6

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

  • Breaking capacity: 33KA @ 750VDC(10A-20A)/ 6KA@750VDC(25A-50A).
  • Protection type: aR.
  • Voltage Rating: 750 VDC.
  • Rated Current:10A-50A
  • UL Certification No.:JDYX2.E343461/JDYX8.E343461
  • RoHS Compliant.
  • Meet the requirements:UL248/ GB13593/ IEC60268/ GB31465

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified

HD10V.J01 750VDC
Product code Rated Current
A		 I²t power consumption
(A²Sec) W
HD10V.J01 15 150 2.6
HD10V.J01 16 200 2.8
HD10V.J01 20 330 3.5
HD10V.J01 25 480 4.3
HD10V.J01 30 730 5.6
HD10V.J01 32 780 6.0
HD10V.J01 35 900 6.6
HD10V.J01 40 1400 7.6
HD10V.J01 50 2200 9.6

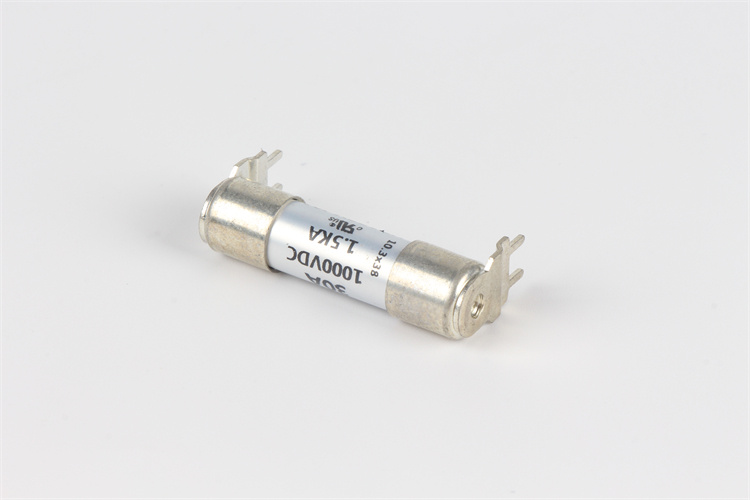

Other types fuse you can choose from our factory:

High Breaking Capacity Dissmann Fuse 10x38mm , Two Pin Ceramic Fuse UL Certified
