10x38mm Ceramic Fuse Dissmann HD10 series Solar PV fuse UL Certified Made in China

Basic information of the 10*38 ceramic fuse:

Executive standard:

• UL248/
• GB13593/
• IEC60268/
• GB31465

Breaking capacity:

• HD10D 500VDC 10-20A 33KA 25-50A 6KA；
• HD10V 700VDC 10-20A 33KA 25-50A 6KA；
• HD10P 750VDC 10-20A 33KA 25-50A 6KA；
• HD10PV 1000VDC 10-40A 1.5KA；

UL Certificate No.:

• JDYX2.E343461
• JDYX8.E343461

Rated Voltage and Rated Current:

• HD10D 500VDC 10-50A；
• HD10V 700VDC 10-50A；
• HD10P 750VDC 10-50A；
• HD10PV 1000VDC 10-40A ；

Due to different installation methods, the product appearance is slightly different:

1. Fix the product with clips:

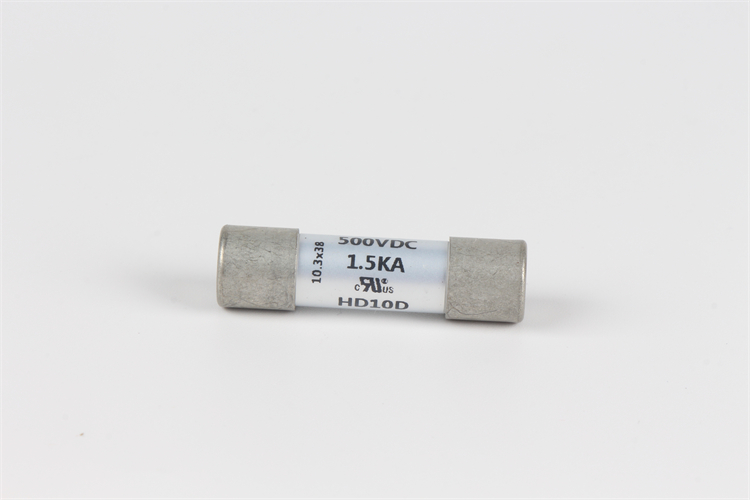

10*38mm HD10D 500VDC Ceramic Fuse

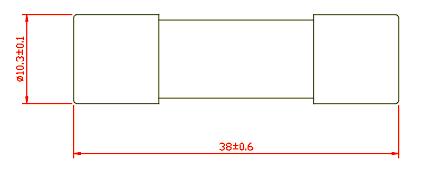

Dimensions drawing of the HD10 series fuse

2. Fix the product with bolts:

10*38mm HD10D.J01 500VDC Ceramic Fuse

Dimensions drawing of the HD10D.J01 series fuse

3. Installation by electric welding:

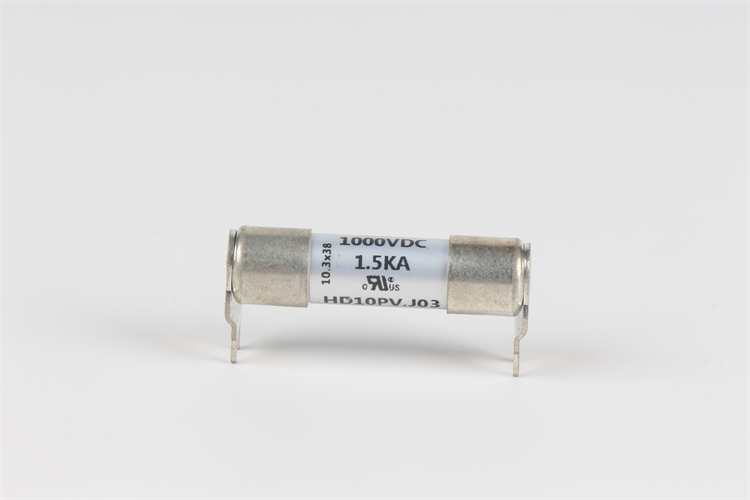

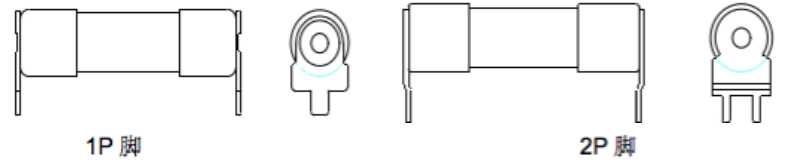

10*38mm HD10PV.J03 1000VDC 30A Ceramic Fuse

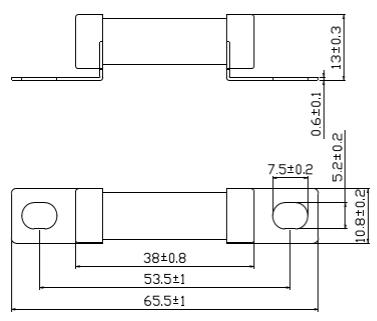

Dimensions drawing of the HD10D.J03 series fuse

Service conditions:

• The fuse operates under the following normal conditions of use, without additional correction.
• When the normal use conditions are exceeded, if they are within the allowable use conditions, some parameters may need to be corrected or consulted. If the scope of allowable use conditions is exceeded, our company should be consulted and the work adaptability evaluation and test of the conditions should be carried out.
• It is recommended that the current value of long-term current flow should not be greater than 80% of the rated current.
• Please refer to the temperature evaluation curve for the use of overtemperature.
• Ambient air temperature
• Normal use conditions: - 5 ° C~40 ° C.
• Allowable use conditions: - 40 ° C~85 ° C.

Transportation and storage:

1.Product storage temperature:

• -40°C~105°C.
• The relative humidity is not more than 70% at 40 ° C;
• The relative humidity at 30 ° C is not more than 80%;
• Under 20 ° C, the relative humidity is not more than 90%.

2.Packaging storage temperature:

• -40°C~70°C.
• The relative humidity is not more than 40% at 40 ° C;
• The relative humidity is not more than 50% at 30 ° C;
• Under 20 ° C, the relative humidity is not more than 90%, and there is no condensation.
