DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

Product Categories
Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions
Contact Now

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

Brand Name : Dissmann

Model Number : DFN-H

Certification : UL248、ISO8820、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Color : Yellow

Rated Voltage : DC80V

Rated Current : 40A

Type Protection : Fast-acting

Breaking Capacity : DC1000A

Size : Medium Automotive Blade Fuse

Contact Now

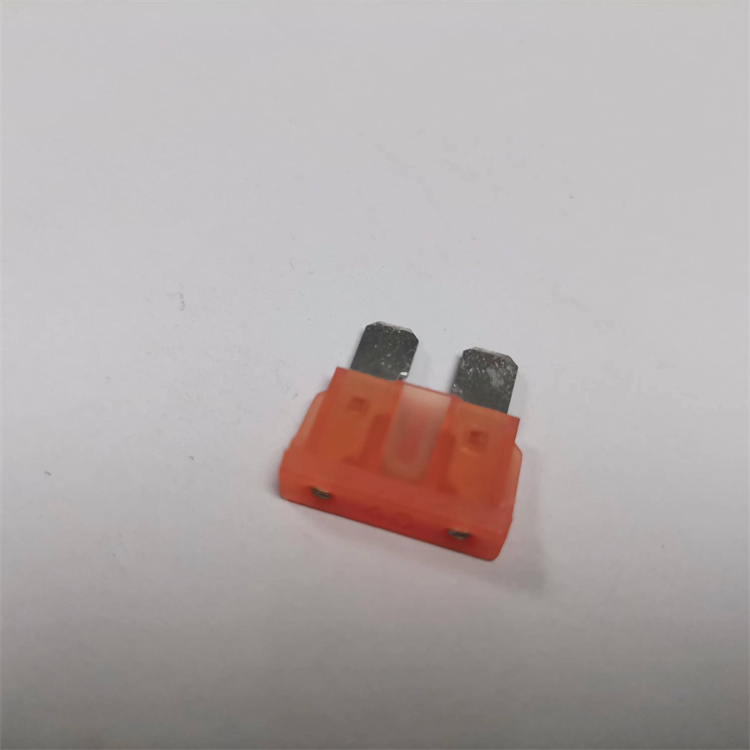

Dissmann® UL Certified DC80V 40A Automotive Blade Fuse Low Voltage Fuse

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

Specifications of the DFN-H series Automotive Blade Fuse:

1. Size of the automotive balde fuse:

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

2. DFN-H series fuse model rated voltage is DC80V, it's classification according to rated current :

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DFN-H DFN-H-1 1 0.4 174 (Black)
DFN-H-2 2 1.5 140 (Gray)
DFN-H-3 3 6.3 137 (Violet)
DFN-H-4 4 13 135 (Pink)
DFN-H-5 5 25 125 (Tan)
DFN-H-7.5 7.5 56 115 (Brown)
DFN-H-10 10 110 110 (Red)
DFN-H-15 15 295 102 (Blue)
DFN-H-20 20 480 96 (Yellow)
DFN-H-25 25 1000 90 (Clear)
DFN-H-30 30 1460 86 (Green)
DFN-H-35 35 2205 88 (Dark green)
DFN-H-40 40 3200 95 (Orange)

3.DFN-H series fuse Current Characteristic curve of the fuse:

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

4.Performance criteria of the automotive blade fuse

Test current item(A)

Current

Minimum time(s)

Maximum time(s)
110% 1A-40A 3600 ∞
150% 1A-40A 0.500 300
200% 1A-40A 0.150 20
350% 1A-40A 0.040 0.500
600% 1A-40A 0.020 0.100

5.Dissmann® automotive blade fuse, include mini size,medium size,large size:

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

6.Other Fuses and fuse holders in our Factory:

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

8.Dissmann® fuse Factory Display:

DC80V 40A Automotive Blade Fuses , UL Certified Low Voltage Fuse

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
