UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

Brand Name : Dissmann

Model Number : DFN-A-40

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Color : 5 colors according to the rated current

Rated Voltage : DC32V

Rated Current : 30A

Characteristic : Fast-acting

Breaking Capacity : DC1000A

Application : For 5G Communication Module System

Contact Now

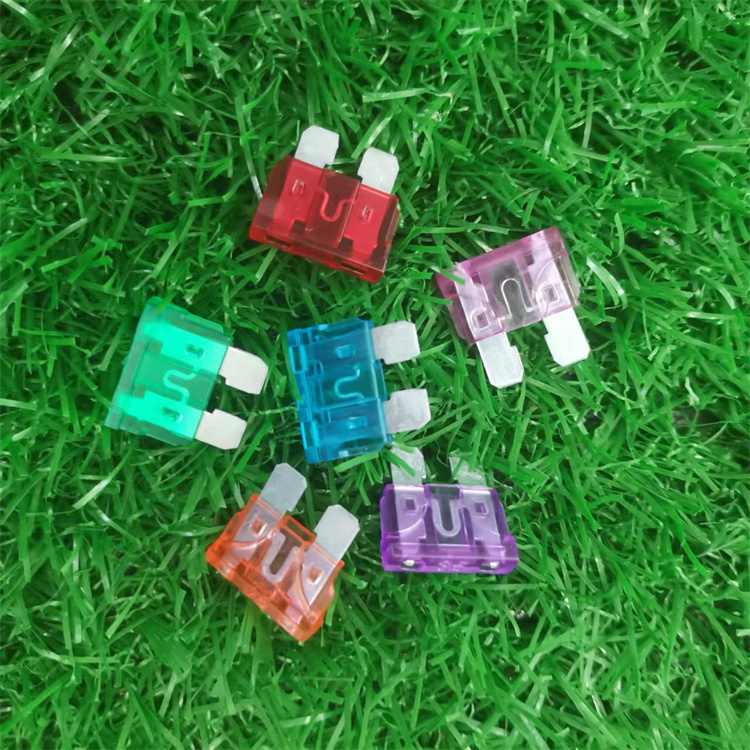

Dissmann® UL Certified DC80V 30A Low Voltage Automotive Blade Fuse Made in China Factory

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

Specifications of the DFN-A series Automotive Blade Fuse:

1.Size of the automotive balde fuse:

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

2.DFN-E series fuse model rated voltage is DC80V, it's classification according to rated current :

Model

型号

Product code

产品代码

Rated current

额定电流 A

I²t

(A²Sec)

Voltage drop

电压降 mV

Pigment

颜色

DFN-EDFN-E-20203500100黄色(Yellow)
DFN-E-3030820097绿色(Green)
DFN-E-40401420093橙色(Orange)
DFN-E-50502250090红色(red)
DFN-E-60602300095蓝色(Blue)

3.DFN-E series fuse Current Characteristic curve of the fuse:

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

4.Performance criteria of the automotive blade fuse

测试电流项目

Test current item(A)

电流

Current

最小时间

Minimum time(s)

最大时间

Maximum time(s)

110%20A-60A360000s-
150%20A-60A-1800s
200%20A-60A2s60s
350%20A-60A0.20s7s
600%20A-60A0.040s1s

5.Dissmann® automotive blade fuse, include mini size,medium size,large size:

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

6.Other Fuses and fuse holders in our Factory:

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

8.Dissmann® fuse Factory Display:

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
