1A-40A Medium Automotive Fuses , UL Standard Car Blade Fuses

Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions
Contact Now

1A-40A Medium Automotive Fuses , UL Standard Car Blade Fuses

Brand Name : Dissmann

Model Number : DFN-A

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : PC

Color : Brown,Red,Yellow,Orange,Green,Blue

Rated Current : 1A-40A

Rated Voltage : 32VDC

Breaking Capacity : DC1000A

Related standard : UL248、ISO8820、RoHS compliant、EU

Characteristic : Fast

Application : car battery, high-voltage circuit, on-board charger

Contact Now

UL standard automotive Medium car blade fuse equal to Littelfuse

Scope of the medium car blade fuse

The rated voltage of this product is 32VDC, and it is used in circuits whose actual working voltage is lower
than or equal to 32VDC. If it is used in a working voltage environment higher than the rated 32VDC voltage
of this product, it will cause serious adverse consequences. any liability.
Product description

Charateristic:Fast Acting

Voltage Rating : DC32V

Interrupting Rating:DC 1000A @32VDC

Rating current Range: 1A-40A

Related standard:UL248,ISO8820,RoHS compliant and EU detective

Materials :
1. Zinc Alloy
2. Plastic

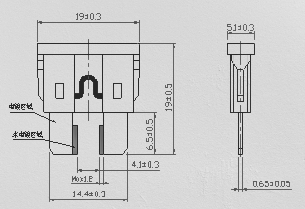

Dimension in milimeter

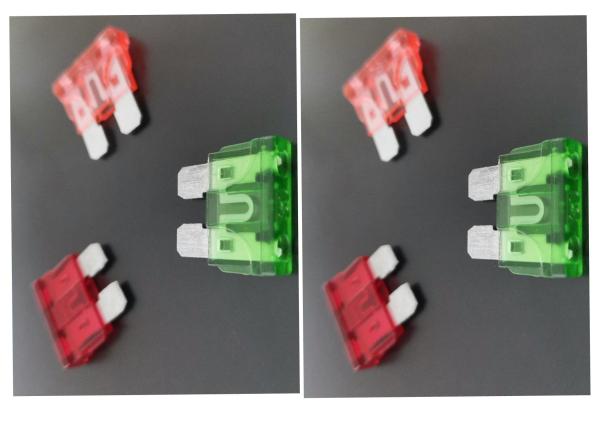

1A-40A Medium Automotive Fuses , UL Standard Car Blade Fuses 1A-40A Medium Automotive Fuses , UL Standard Car Blade Fuses

1A-40A Medium Automotive Fuses , UL Standard Car Blade Fuses

Product type

Model Product code Rated current I²t Voltage drop Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

FAQ

Question:What are the advantages of your car blade fuse and Littelfuse?

Answer:Our car blade fuse are cheaper in terms of price, and our products are also in line with UL certification, and the price / performance ratio is equivalent to Littelfuse.
