DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic

Name: DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic
Brand: Dissmann
Price: 1 USD

Quality DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic wholesale

Brand Name : Dissmann

Model Number : DNN-E 80VDC

Certification : UL : E496054

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated voltage : 80VDC

Rated current : 40A-500A

Protection type : aR

Breaking capacity : DC2700A

UL Certification No. : E496054

Contact Now

DC80V Dissmann Automotive Fuse Medium Flat Plug Fuse Bolted Ceramic Fuse Made in China

DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic

Breaking capacity: 2700A @ 80VDC
Protection type: aR.
Voltage Rating: 80 VDC.
Rated Current:40A-500A
UL Certification No.:E496054
RoHS Compliant.
Meet the requirements:UL248-13/ ISO8820/ JASO-D622

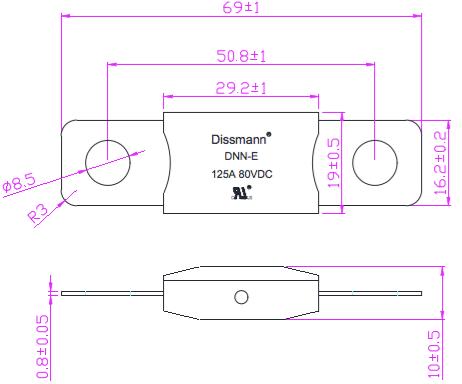

Dimension of the fuse:

DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic

When the rated current is ≥225A,the contact foot will thicker to 1.5mm

Product type:

DNN-E 80VDC		Standard Performance
Product code	Rated Current A	Load(Testing current)	Opening Time (Sec)
			Mini Time	Max Time
DNN-E-40	40	100%	14400	∞
DNN-E-50	50
DNN-E-60	60
DNN-E-70	70
DNN-E-80	80
DNN-E-100	100
DNN-E-125	125	200%	0	100%
DNN-E-150	150
DNN-E-175	175
DNN-E-200	200
DNN-E-225	225
DNN-E-250	250
DNN-E-300	300	600%	0	1
DNN-E-350	350
DNN-E-400	400
DNN-E-450	450
DNN-E-500	500

SCOPE OF APPLICATION:

DC voltage of 80VDC and below

The rated voltage of this product is 80VDC, which is used in circuits with actual working voltage lower than or equal to 80VDC. If it is used in the working voltage environment with a voltage higher than the rated 80VDC of this product, it may cause serious adverse consequences, and our company will not bear any responsibility.

INSTALLATION REQUIREMENTS

Mounting bolt M8, recommend torque 11N·m

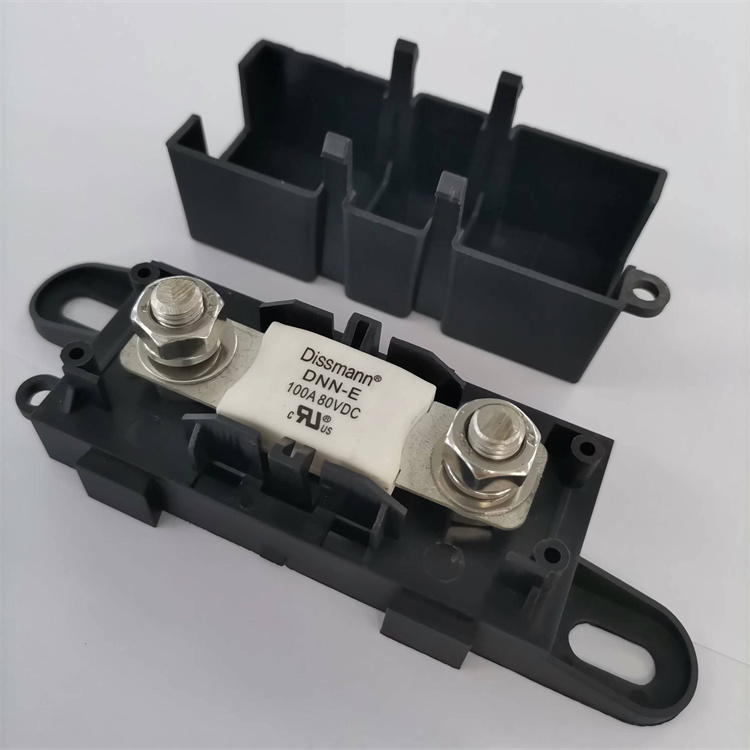

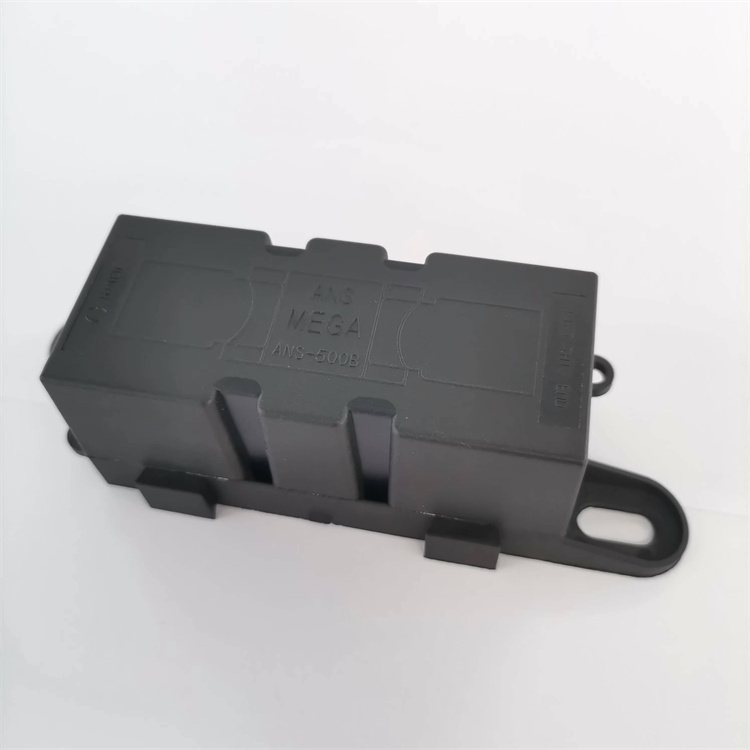

Matched base of the DNN-E DC80V fuse:

DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic

This 80vdc fuse are equal to MEGA fuse.

You can Choose other fuses and fuse holder from our factory:

DC80V Dissmann Automotive Fuse Medium Flat Plug Bolted Ceramic
