Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

Product Categories
Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions
Contact Now

Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

  • 1
  • 2

Brand Name : Dissmann

Model Number : HEV-J-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C/TT

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Color : White

Rated Current : 5A-800A

Rated Voltage : 1000VDC

Breaking Capacity : DC30KA

Category : aR

Keyword : Electric Vehicle fuse

Application : pure electric vehicles and hybrid electric vehicles

Contact Now

Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908

DC1000V HEV series high breaking capacity fuses supplier

Product details of the HEV series fuse

This HEV series fuse is round tube bolt-connected fuses,can be line in circuit of DC1000V,rated current range of 5A-800A,breaking capacity up to DC30KA.Its tube material is different from the EV series. HEV is made of glass fiber and EV is ceramic material,which have the characteristics of small size, fast blowing, low I2t, and high reliability.

Application of the HEV series fuse

It is suitable for applications in vibration environments such as rail transit and motor vehicles.

Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles.

1000V DC fuse specially designed for pure electric vehicle and hybrid vehicle power battery.

Provide fuse bases specially customized for harsh automotive environments.

Product dimension of the HEV series fuse

Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33

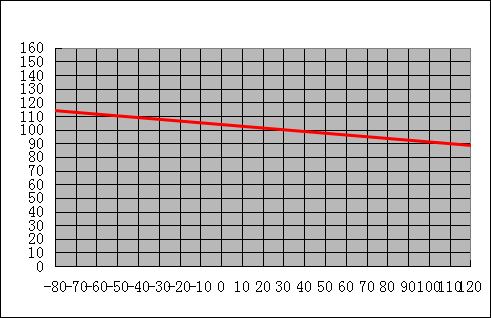

Current characteristic curve

Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

FAQ

Question:Does this 1000VDC Fuse have a base?

Answer:Now this 1000VDC fuse has no base, only 250A has a base.
